INSPIRE #35 Roller Chain - 250ft Reel

Name: INSPIRE #35 Roller Chain - 250ft Reel
Brand: MAXCO Chain
SKU: INSPIRE-35-ROLLER-CHAIN-250FT
Availability: InStock

SKU: INSPIRE-35-ROLLER-CHAIN-250FT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

INSPIRE #35 Roller Chain - 250ft Reel Description/Features

INSPIRE #35 Roller Chain - 250ft Reel Specifications

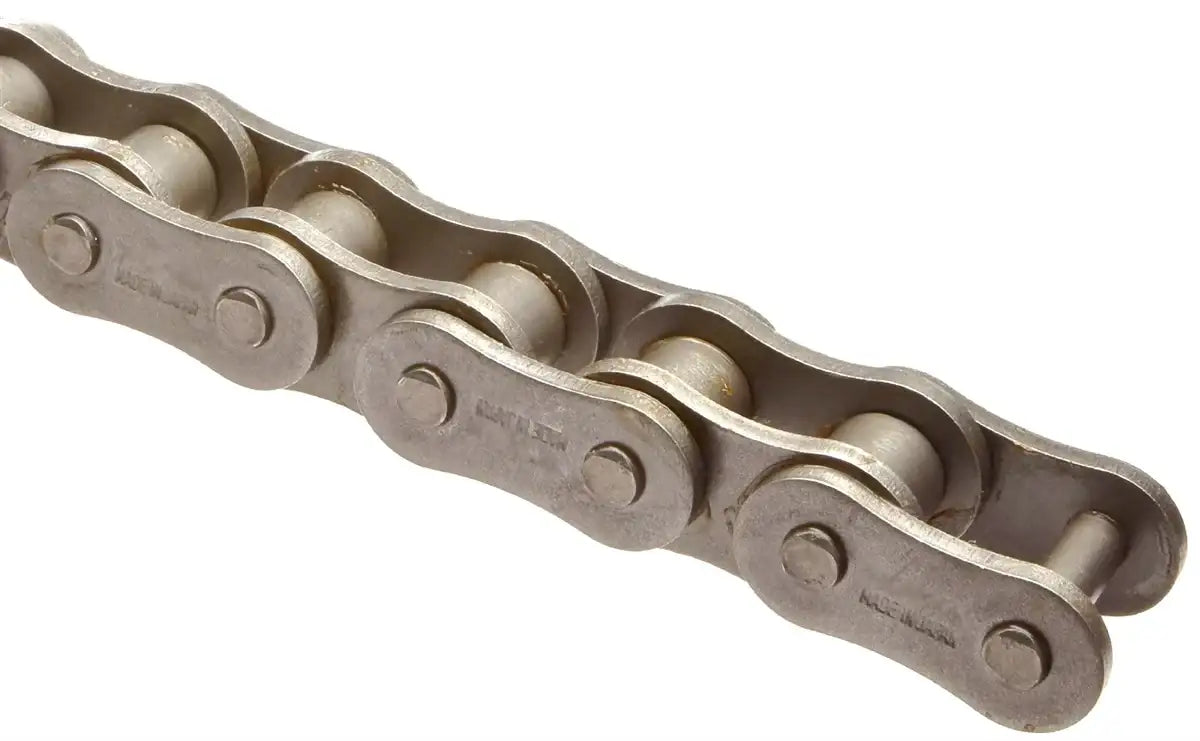

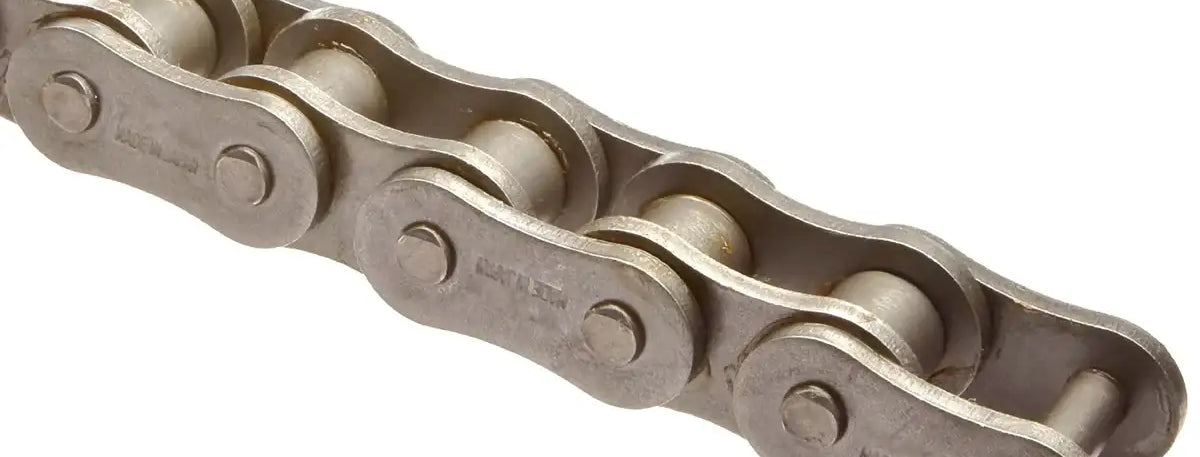

MAXCO INSPIRE #35 Roller Chain 250' Reel

INSPIRE #35 roller chain offers high strength, durability, and a long working life. INSPIRE #35 roller chain is manufactured out of high quality carbon steel that is suitable in a broad range of applications. Each component of this roller chain has been heat-treated, shot peened, and is assembled exact pin-plate, bushing-plate alignment for the best operation and chain longevity. Additionally, this chain fully meets all ANSI B29.1 Standards. USA Roller Chain & Sprockets offers some of the best pricing on INSPIRE brand roller chain, contact us for pricing and availability.

Dimensions:

Chain Size: #35
Working Load: 560lbs
Tensile Strength: 2,400lbs
Pitch (P): 0.375"
Roller Width (W): 0.188"
Roller Diameter (D): 0.200"
Overall Chain Width (F): 0.456"
Link Plate Height (H): 0.356"
Link Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Weight: 0.23 LBS/ FT
