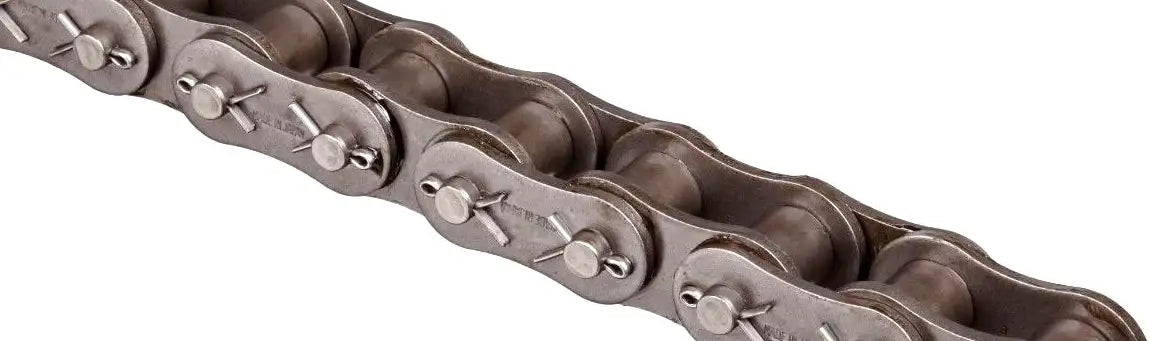

INSPIRE #180 Cottered Roller Chain - 10ft Box

Name: INSPIRE #180 Cottered Roller Chain - 10ft Box
Brand: MAXCO Chain
SKU: INSPIRE-180-COTTERED-ROLLER-CHAIN
Availability: InStock

SKU: INSPIRE-180-COTTERED-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

INSPIRE #180 Cottered Roller Chain - 10ft Box Description/Features

INSPIRE #180 Cottered Roller Chain - 10ft Box Specifications

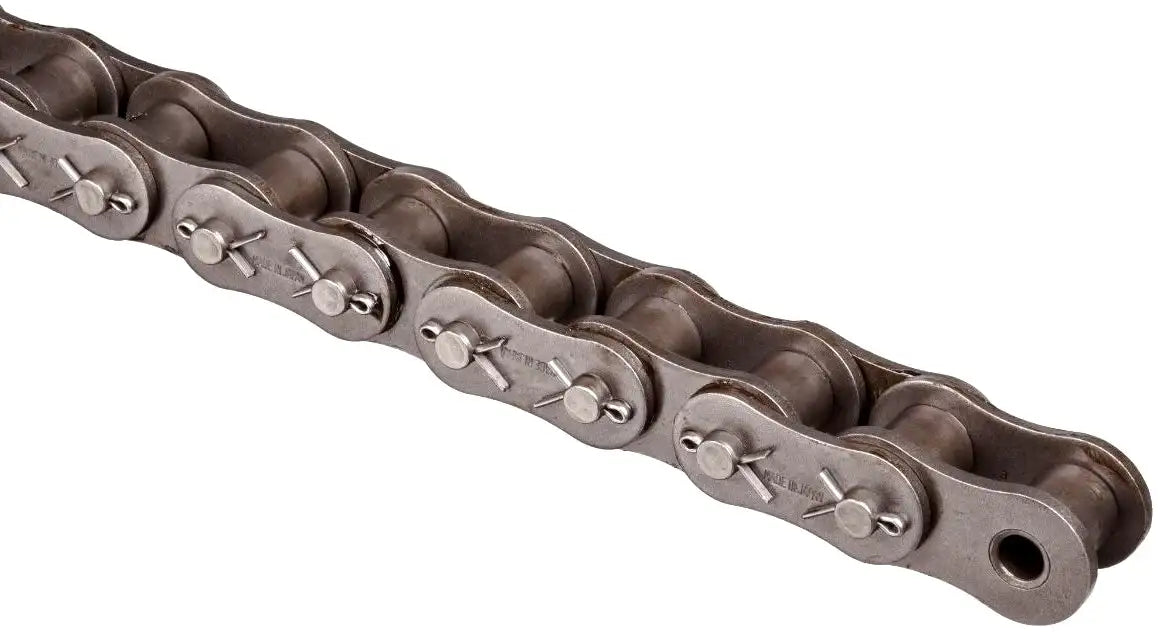

MAXCO INSPIRE #180 Cottered Roller Chain

INSPIRE #180 cottered roller chain offers high strength, durability, and a long working life. INSPIRE #180 cottered roller chain is manufactured out of high quality carbon steel that is suitable in a broad range of applications. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. INSPIRE Chain has set the bar for quality roller chains with offering maximum operating advantages at minimum cost. INSPIRE Chain has solid bushings, solid rollers, and is manufactured with components that have been shot peened, heat treated, and hardened making the roller chain extremely durable, high strength, and have a long working life. Additionally for added strength INSPIRE roller chain has wide side plates and has been totally lubricated for a prolonged working life. INSPIRE Chain drive efficiency rating of over 98% with no power loss through friction or slipping throughout the entire working life of the chain. For additional information or pricing and availability please contact us.

Dimensions:

Chain Size: #180 Roller Chain
Tensile Strength: 77,700lbs
Working Load: 17,730lbs
Pitch (P): 2.250"
Roller Width (W): 1.406"
Roller Diameter (D): 1.406"
Plate Height (H): 2.135"
Plate Thickness (T): 0.281"
Pin Diameter (E): 0.687"
Overall Width (F): 3.087"
Weight: 9.31 LBS/ FT
