Premium SS8810M-K750 Stainless Steel Table Top Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

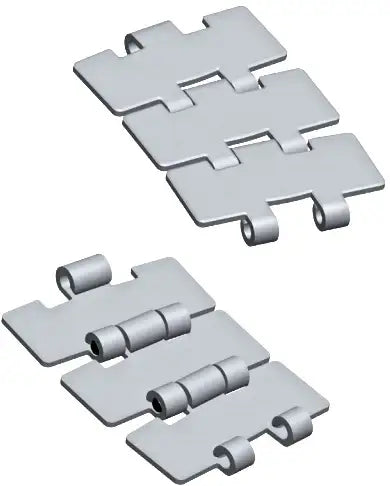

The SS8810 tabletop chain is a 7.50-inch (190.5 mm) wide stainless steel side-flexing conveyor chain designed for tabletop conveyor systems that include curves and directional changes. Unlike straight-running chains, this style of chain is engineered to articulate laterally, allowing smooth product transfer through conveyor turns while maintaining stable product carry. The corrosion-resistant stainless steel construction makes it suitable for washdown, food processing, and moisture-exposed environments, and it is commonly used in bottling, packaging, and container handling lines. The tab configuration provides additional product control and guidance during conveying. With an operating temperature capability from approximately −40°F to +500°F, the chain can function in both refrigerated and heated production areas. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.
For more information or to get a quote on Premium Table Top Chain SS8810-K750 please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: SS8810-K750
- Pitch (P): 1.500"
- Plate Thickness (T): 0.122"
- Pin Diameter (D): 0.250"
- Width (L): 7.500"
- Backflex Radius (R): 3.15"
- Minimum Curve Radius (R): 18.00"
- Dimension (H): 0.260"
- Dimension (F): 0.386"
- Dimension (W): 1.658"
- Dimension (X): 1.772"
- Material: Stainless Steel
- Chain Strength: 1,215 LBS
- Chain Weight: 3.43 LBS/ FT
Chain Size: SS8810-K750 Pitch (P): 1.500" Plate Thickness (T): 0.122" Pin Diameter (D): 0.250" Width (L): 7.500" Backflex Radius (R): 3.15" Minimum Curve Radius (R): 18.00" Dimension (H): 0.260" Dimension (F): 0.386" Dimension (W): 1.658" Dimension (X): 1.772" Material: Stainless Steel Chain Strength: 1,215 LBS Chain Weight: 3.43 LBS/ FT
