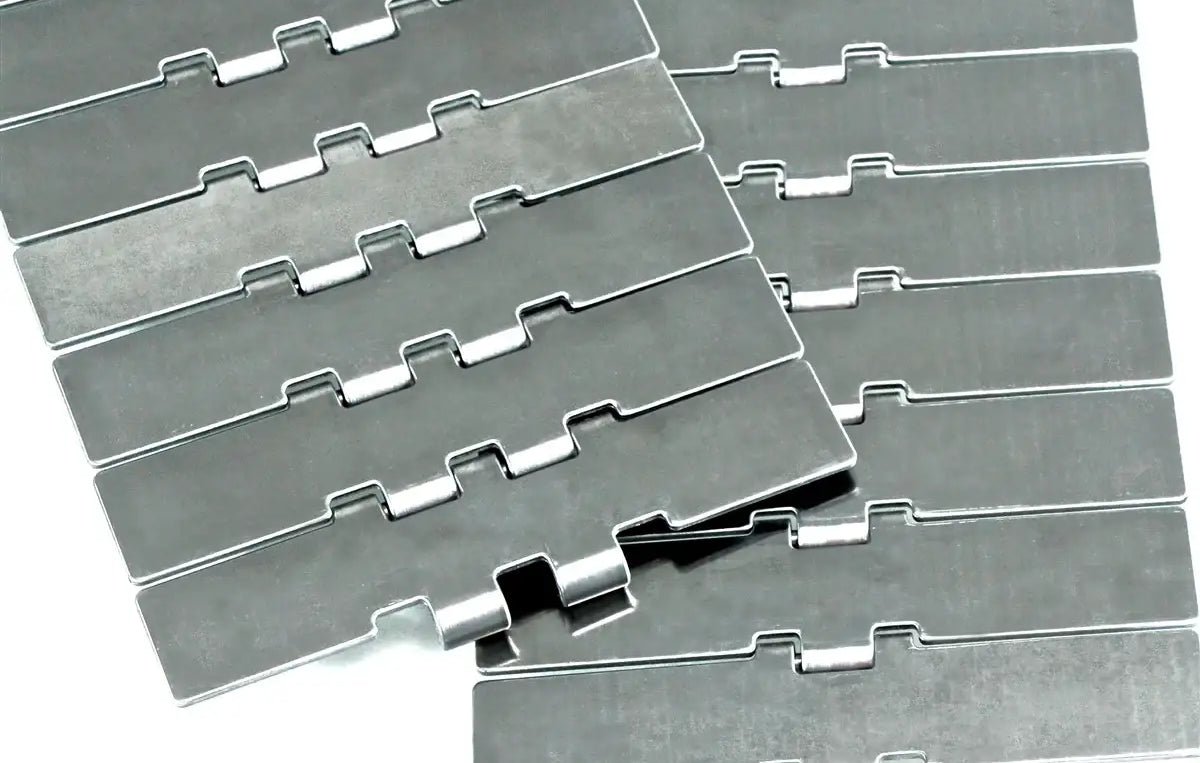

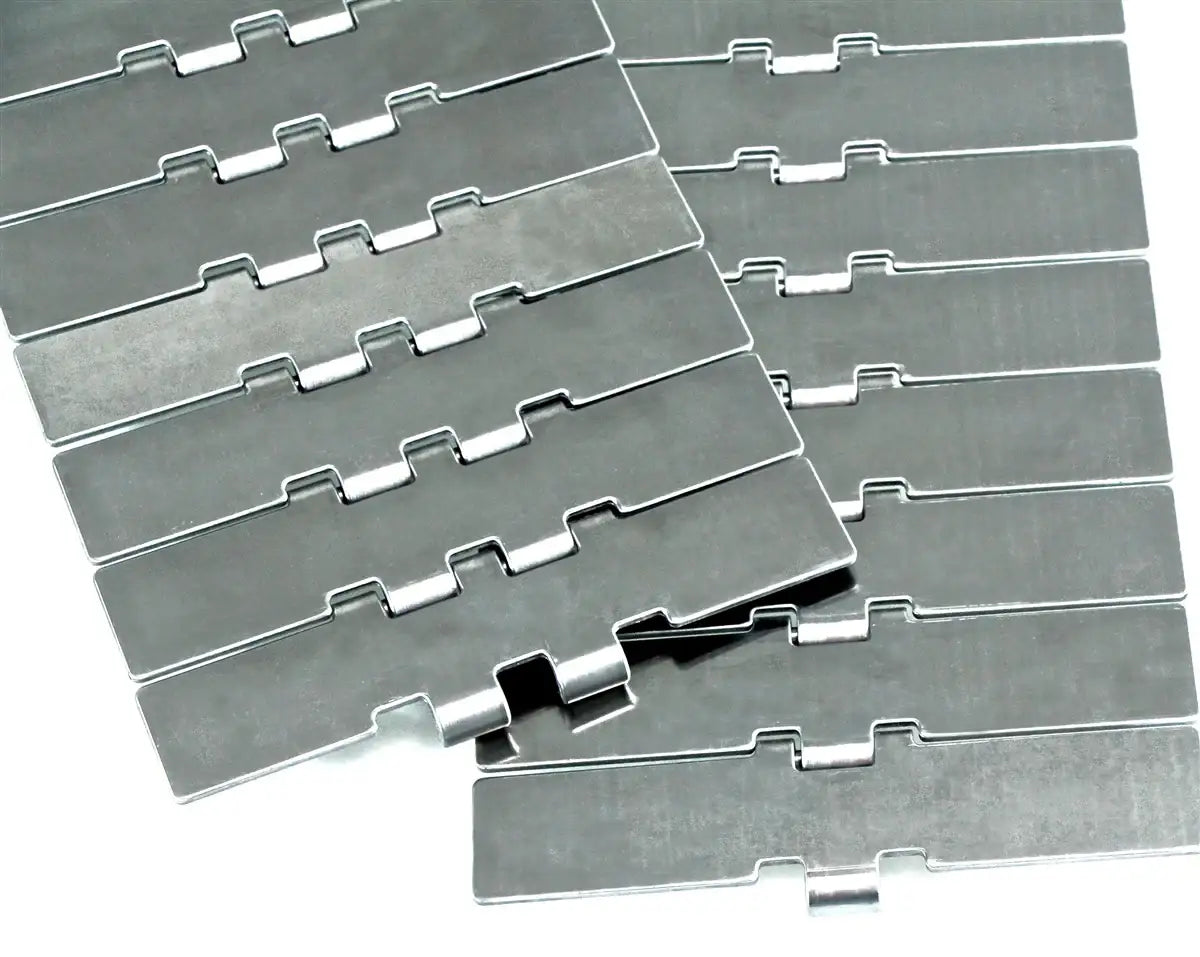

Premium S800-K750 Steel Table Top Chain

The S800 tabletop chain is a 7.50-inch (190.5 mm) wide straight-running steel conveyor chain used in tabletop conveyor systems requiring higher load capacity and wear resistance. Manufactured from hardened steel components with an approximate hardness of 43 HRC, this chain is designed for continuous operation on production and material handling lines where strength and durability are more important than corrosion resistance. This style of tabletop chain is commonly used in packaging, case handling, and general industrial conveying applications operating in dry environments. The chain can operate across a temperature range of approximately −40°F to +365°F. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.

For more information or to get a quote on Premium Table Top Chain S800-K750 please contact us and we will be happy to assist you!
Dimensions:

• Chain Size: S800-K750
• Pitch (P): 1.500"
• Plate Thickness (T): 0.122"
• Pin Diameter (D): 0.25"
• Plate Gap (G): 0.063"
• Width (L): 7.500"
• Backflex Radius (R): 5.905"
• Dimension (H): 0.260"
• Dimension (W): 3.15"
• Dimension (X): 3.27"
• Material: C45 Carbon Steel
• Chain Strength: 4,050 LBS
• Chain Weight: 3.90 LBS/ FT
