Premium SS8157-K750 Mega Stainless Steel Table Top Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

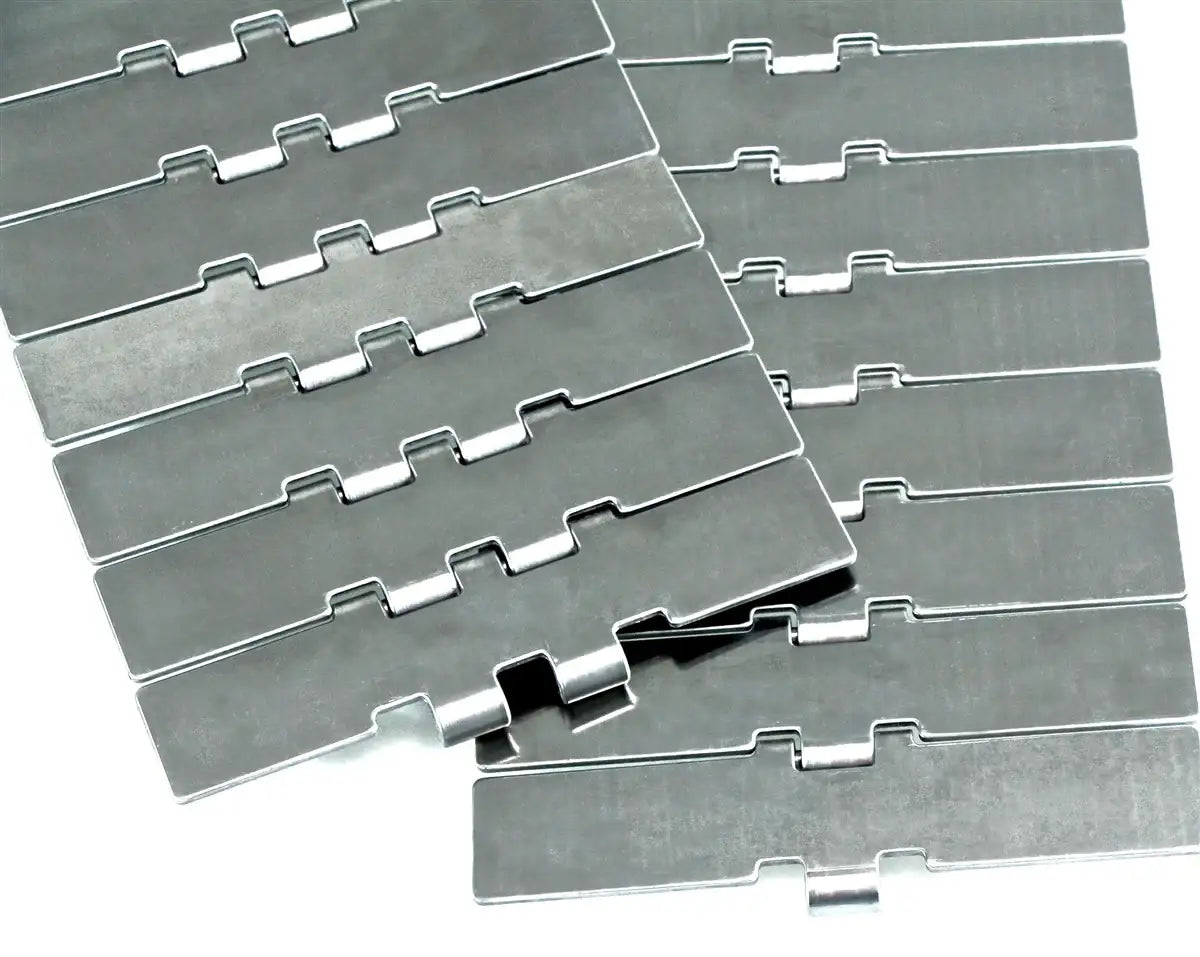

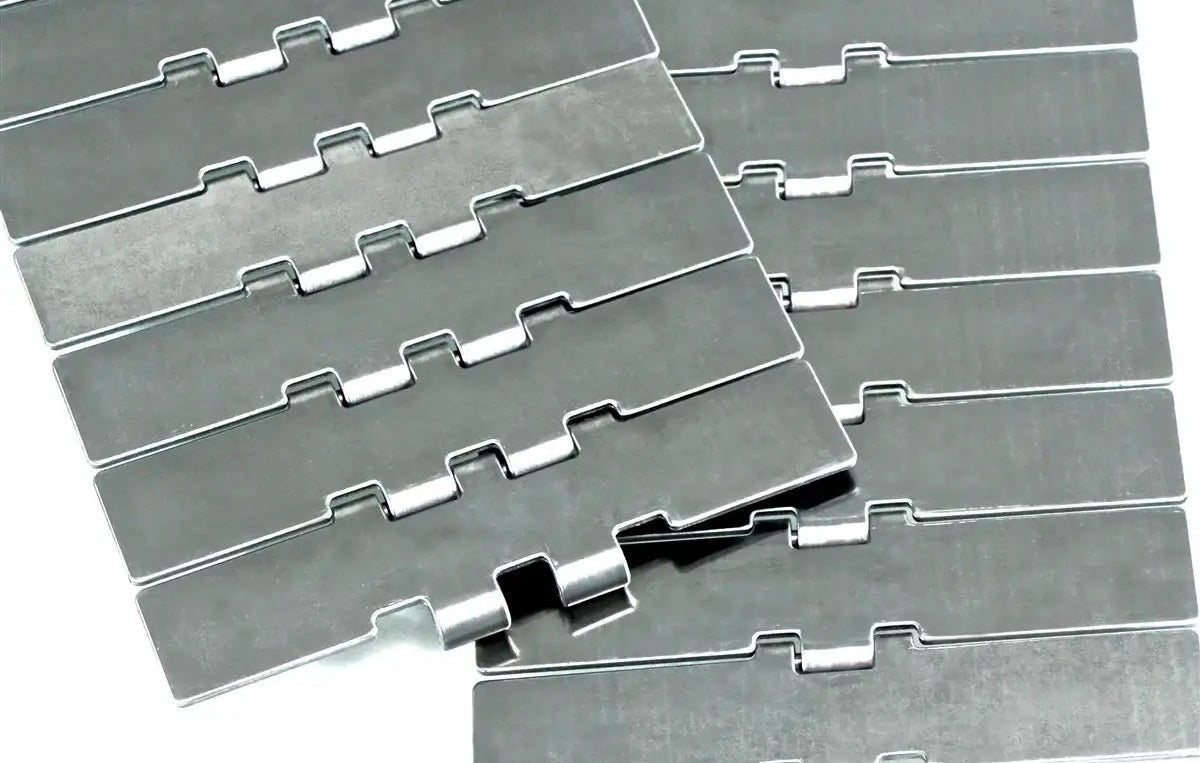

The SS8157 tabletop chain is a 7.50-inch (190.5 mm) wide heavy-duty stainless steel conveyor chain designed for tabletop conveyor systems requiring increased strength and wear life. The reinforced stainless steel construction supports higher loads and continuous operation while providing corrosion resistance in moisture-exposed environments. This style of chain is commonly used in demanding packaging, container handling, and industrial conveying applications. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.
For more information or to get a quote on Premium Table Top Chain SS8157-K750 please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: SS8157-K750
- Pitch (P): 1.500"
- Plate Thickness (T): 0.122"
- Pin Diameter (D): 0.25"
- Plate Gap (G): 0.063"
- Width (L): 7.500"
- Backflex Radius (R): 5.905"
- Dimension (H): 0.260"
- Dimension (W): 3.15"
- Dimension (X): 3.27"
- Material: Stainless Steel
- Chain Strength: 2,360 LBS
- Chain Weight: 3.77 LBS/ FT
Chain Size: SS8157-K750 Pitch (P): 1.500" Plate Thickness (T): 0.122" Pin Diameter (D): 0.25" Plate Gap (G): 0.063" Width (L): 7.500" Backflex Radius (R): 5.905" Dimension (H): 0.260" Dimension (W): 3.15" Dimension (X): 3.27" Material: Stainless Steel Chain Strength: 2,360 LBS Chain Weight: 3.77 LBS/ FT
