Premium C100HSP Skidsteer Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

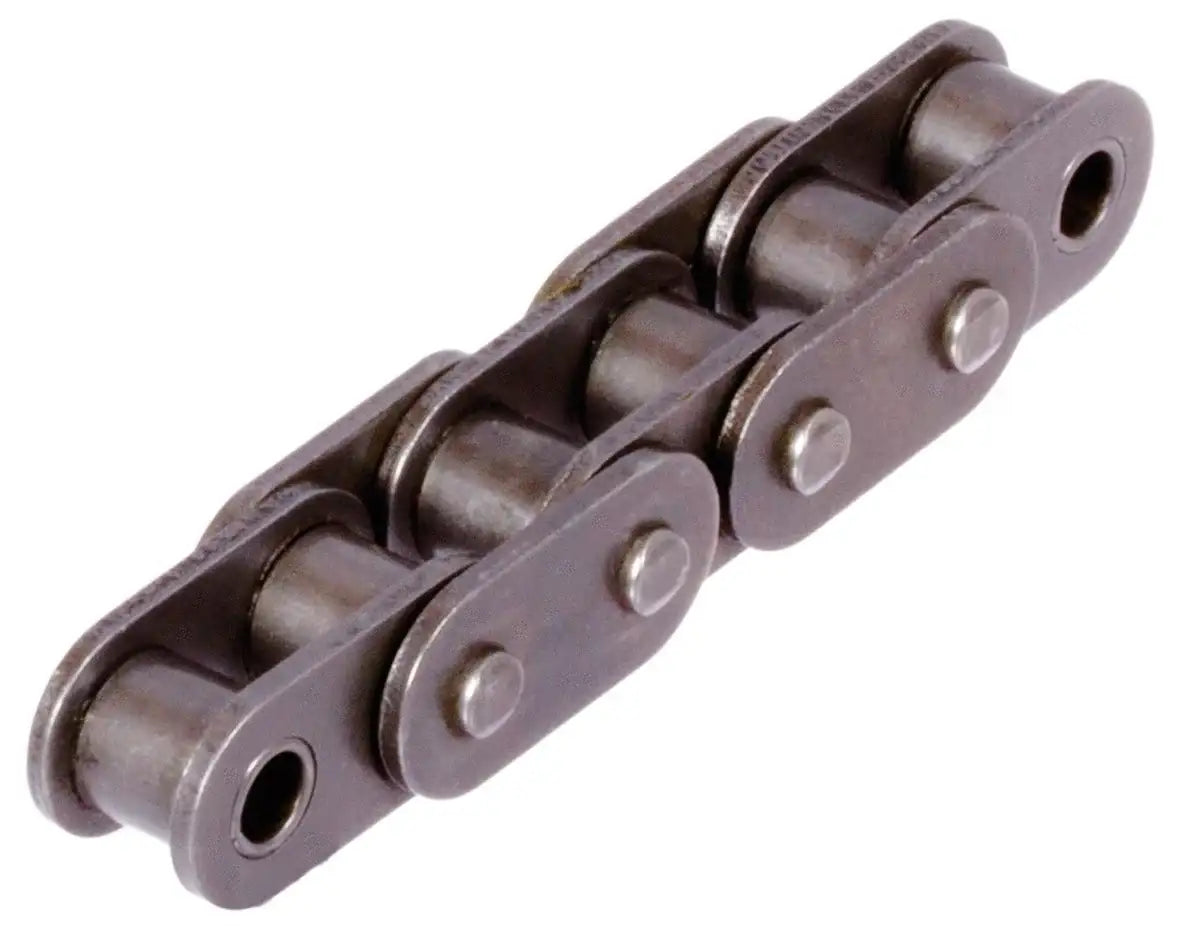

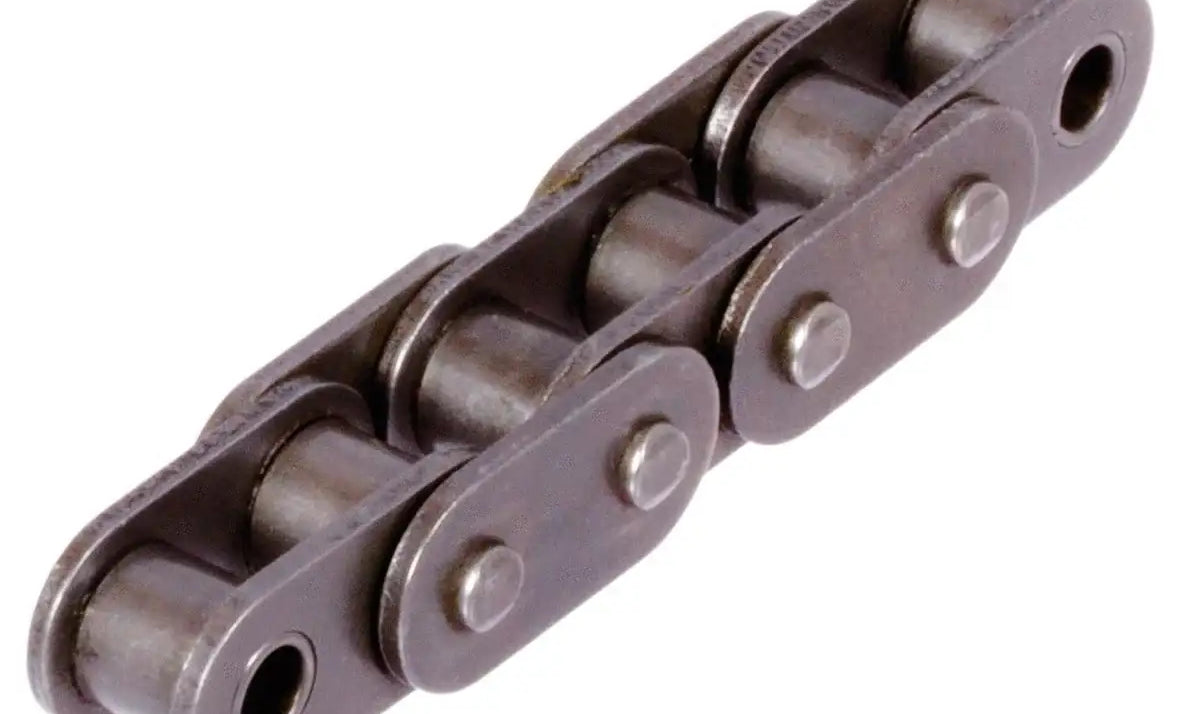

With years of testing, engineering, and using state-of-the-art equipment the C100HSP series Heavy Duty Skid Steer Chains were introduced to the market as an ultra premium high-strength skid steer replacement chain. This chain features a straight side plate design along with oriented inner and outer plates with extremely high pitch hole bearing areas to ensure maximum finite fatigue strength. C100HSP chain has also been maximum pre loaded and shot peened to minimize chain elongation and maximize chain life. In addition to everything thing else this chain has through-hardened shot peened pins with engineered metallurgy to further maximize the chains breaking load strength without compromising fatigue strength. In addition to the chain we also offer a complete line of high quality C100HSP sprockets that are manufactured to ANSI specifications and feature hardened teeth. For more information or to get a quote please contact us and we will be happy to assist you!
For more information or to get a quote please contact us and we will be happy to assist you!
For more information or to get a quote on Premium C100HSP Skidsteer Chain please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: C100HSP
- Pitch (P): 31.75mm
- Dimension (D1): 19.05mm
- Dimension (B1): 18.90mm
- Dimension (D2): 9.54mm
- Dimension (L): 43.6mm
- Dimension (H2): 30.0mm
- Dimension (T): 4.8mm
- Tensile Strength: 32,600 LBS
Chain Size: C100HSP Pitch (P): 31.75mm Dimension (D1): 19.05mm Dimension (B1): 18.90mm Dimension (D2): 9.54mm Dimension (L): 43.6mm Dimension (H2): 30.0mm Dimension (T): 4.8mm Tensile Strength: 32,600 LBS
