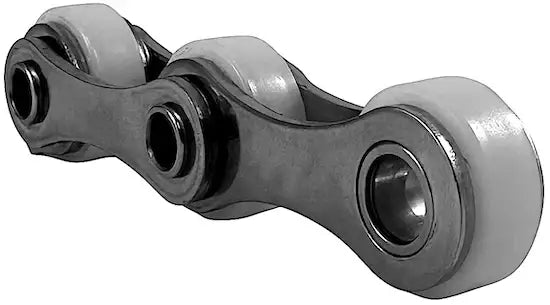

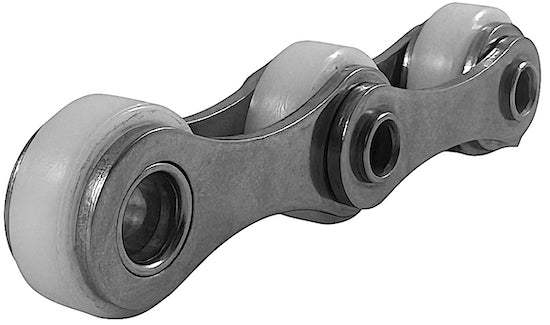

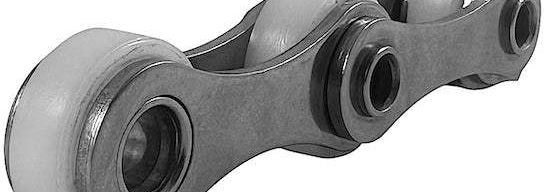

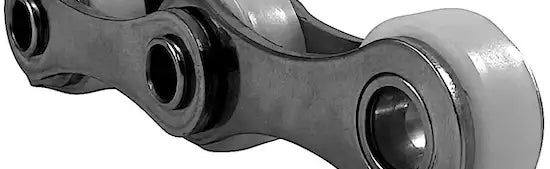

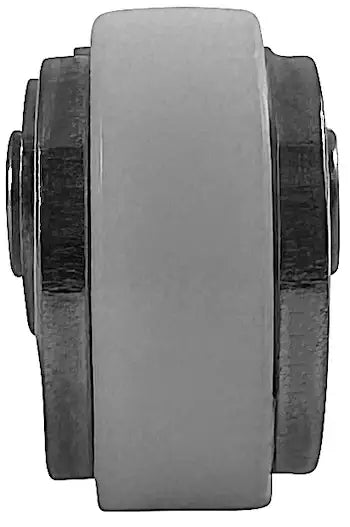

Stainless Steel HB50.8 Hollow Pin Roller Chain Nylon Rollers - 10ft Box

Stainless steel HB50.8 hollow pin chain with nylon rollers is a highly versatile metric hollow pin chain with a 50.8mm (2") pitch and a hollow pin inside diameter of 8.30mm. HB50.8SSNYL features an all 304-grade stainless construction except the PA66 nylon rollers; this chain is capable of operating in abrasive, corrosive, and food-grade environments. By design, the HB50.8 stainless steel chain with nylon rollers is excellent in conveyor applications due to its large pitch and oversized roller design. HB50.8 stainless chain with plastic rollers conforms to ISO and British Standards and is used in various applications worldwide. We standardly supply HB50.8 stainless steel chains with nylon rollers in lengths of 10ft, each of which will include a connecting link equipped with high-hold circle clips for maximum retention. We also provide stainless steel HB50.8 sprockets, chain lubricants, and guides. For additional information or to get a quote on our premium HB50.8 stainless steel chain with nylon rollers, contact our customer support team, and we will be happy to assist you!

HB50.8SSNYL Hollow Pin Chain Dimensions

• Part #: HB50.8SSNYLR
• Pitch (P): 50.80mm
• Plate Thickness (T): 3.00mm
• Plate Height (H): 26.00mm
• Roller Width (N): 10.00mm
• Roller Diameter (D): 30.00mm
• Hollow Pin ID (K): 8.30mm
• Hollow Pin OD (B): 11.60mm
• Roller Link Inside Width (V): 16.45mm
• Pin Link Inside Width (U): 23.60mm
• Overall Chain Width (W): 26.50mm
• Overall Connecting Link Width (X): 28.50mm
• Minimum Tensile Strength: 3,600 kgs
