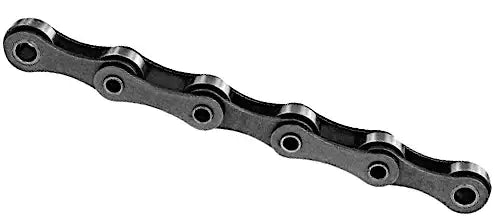

HB50.8 Hollow Pin Roller Chain - 10ft Box

HB50.8 hollow pin chain is a highly versatile metric hollow pin chain with a 50.8mm (2") pitch and a hollow pin inside diameter of 8.30mm. By design, this chain is excellent in conveyor applications due to its large pitch and oversized roller design. HB50.8 chain conforms to ISO and British Standards and is used in various applications worldwide. What makes our HB50.8 roller chain unique is the use of precision components that have been heat-treated and shot-peened, reducing fatigue and increasing the chain lifespan. We also factory pre-load our roller chains, which reduces initial and long-term elongation. We standardly supply HB50.8 chains in lengths of 10ft, each of which will include a connecting link equipped with high-hold circle clips for maximum retained. We also provide HB50.8 sprockets, chain lubricants, and guides. For additional information or to get a quote on our premium HB50.8 chain, contact our customer support team, and we will be happy to assist you!

HB50.8 Hollow Pin Chain Dimensions

• Part #: HB50.8
• Pitch (P): 50.80mm
• Plate Thickness (T): 3.00mm
• Plate Height (H): 26.00mm
• Roller Width (N): 10.00mm
• Roller Diameter (D): 30.00mm
• Hollow Pin ID (K): 8.30mm
• Hollow Pin OD (B): 11.60mm
• Roller Link Inside Width (V): 16.45mm
• Pin Link Inside Width (U): 23.60mm
• Overall Chain Width (W): 26.50mm
• Overall Connecting Link Width (X): 28.50mm
• Minimum Tensile Strength: 5,100 kgs
• Weight: 1.55 kG/ M
