• H60 K1 Attachment
1 1

H60 K1 Attachment

H60 K1 Attachment

Note: Custom Cut to Length Chain Also Available
Product Code: H60-K1-ATTACHMENT
Shipping calculated at checkout.
Other Customers Viewed
H60 Chain
H60 Chain
Login
View full details
Description
Specification
This H60 K1 attachment is a high quality precision attachment that is a common stock item, and can be assembled onto H60 chain in any configuration needed or sold as an individual H60 K-1 attachment link. For more information or to get a quote on H60 chain with K1 attachments or attachment links please contact us and we will be happy to assist you.

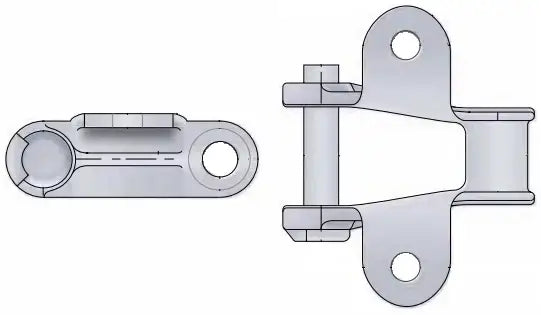

Dimensions:
H60 K1 Attachment
  • Attachment Size: H60 K1
  • Pitch: 2.308"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Dimension (J): 0.75"
  • Dimension (K): 1.06"
  • Dimension (M): 3.00"
  • Dimension (R): 1.12"
  • Dimension (T): 0.19"
  • Dimension (W): 4.00"
  • Weight: 2.80 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Attachment
  • Extremely Durable
  • Can Be Assembled In Any Configuration
  • Usable In Abrasive Environments
  • Typically In-Stock
Featured image
  • Attachment Size: H60 K1
  • Pitch: 2.308"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Dimension (J): 0.75"
  • Dimension (K): 1.06"
  • Dimension (M): 3.00"
  • Dimension (R): 1.12"
  • Dimension (T): 0.19"
  • Dimension (W): 4.00"
  • Weight: 2.80 LBS/ FT
