H-3292 Adapter Sleeve
Home > Power Transmission > Miscellaneous Items > Roller Bearings, Adapters & Accessories > H-3292 Adapter Sleeve

H-3292 Adapter Sleeve

SKU: H-3292-ADAPTER-SLEEVE
Only 0 left in stockItem is out of stock Item is unavailable
Request a Quote
<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715161031023" , "metafield_value":""}]
H-3292 Adapter Sleeve Features
H-3292 Adapter Sleeve Specifications

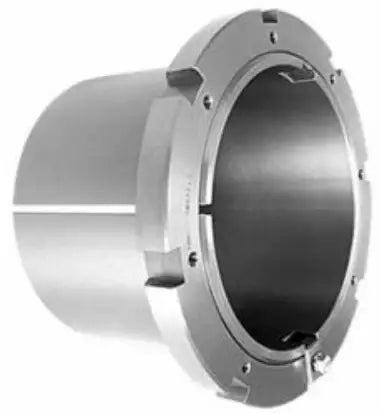

This H-3292 Adapter Sleeve features a 430 millimeter (17") bore and is a premium quality, high precision adapter sleeve. H-3292 adapter sleeves are supplied with the accompanying nut, lock plate, and lock plate bolt. This adapter sleeve is made for use with 232 series spherical bearings, which we also offer a full line of. For more information or to get a quote on the adapter sleeve or spherical bearings, please contact us and we will be happy to assist you.

Dimensions:
H-3292 Adapter Sleeve
  • Part Number: H-2360
  • Dimension (N): 280mm (11")
  • Other Bore Sizes: 10-15/16"
  • Dimension (H): 300mm
  • Dimension (L): 240mm
  • Dimension (D): 380mm
  • Dimension (C): 40mm
  • Dimension (W): 54mm
  • Nut Size: HM3160
  • Lock Plate Size: MS3160
  • Lock Plate Bolt: M10 X 30
  • Weight: 34 KG

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: H-3292
  • Dimension (N): 430mm (17")
  • Dimension (H): 460mm
  • Dimension (L): 382mm
  • Dimension (D): 580mm
  • Dimension (C): 75mm
  • Dimension (W): 90mm
  • Nut Size: HM3192
  • Lock Plate Size: MS3192
  • Lock Plate Bolt: M16 X 30
  • Weight: 132 KG
