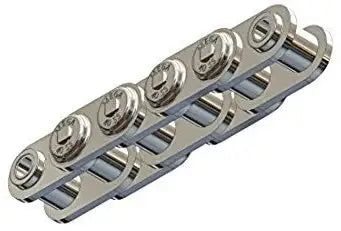

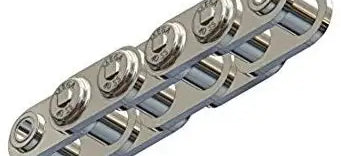

#80 Mega Stainless Steel Roller Chain - 10ft Box

Roller Chain > Roller Chain by Size > 80 Roller Chain

#80 Mega Stainless Steel Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: GDP-80SS-MEGA-10FT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715156509039" , "metafield_value":""}]
#80 Mega Stainless Steel Roller Chain - 10ft Box Features
#80 Mega Stainless Steel Roller Chain - 10ft Box Specifications
This #80 Mega Series stainless steel roller chain bar far is the strongest stainless steel roller chain available. Wear performance for this chain has increased dramatically by 35-50% due to the larger bearing areas and unique labyrinth seal design. Each part that is in this stainless steel roller chain is constructed out of a premium quality ANSI 304-grade austenitic stainless steel that is excellent for heat and it is highly corrosion resistant. The strength of this chain even challenges the strength of the premium carbon steel roller chains. This chain is commonly in stock in 10ft boxes including one connecting link per box. The chain will work on ANSI standard sprockets, if you have any additional questions or need more information give us a call!

Dimensions:
  • Chain Size: #80SS Mega
  • Tensile Strength: 15,850lbs
  • Working Load: 990lbs
  • Pitch (P): 1.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Overall Chain Width (F): 1.550"
  • Link Plate Height (H): 0.945"
  • Link Plate Thickness (T): 0.125"
  • Pin Diameter (D): 0.312"
  • Specifications Met: ANSI Standards
  • Chain Size: #80SS Mega
  • Tensile Strength: 15,850lbs
  • Working Load: 990lbs
  • Pitch (P): 1.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Overall Chain Width (F): 1.550"
  • Link Plate Height (H): 0.945"
  • Link Plate Thickness (T): 0.125"
  • Pin Diameter (D): 0.312"
  • Specifications Met: ANSI Standards
