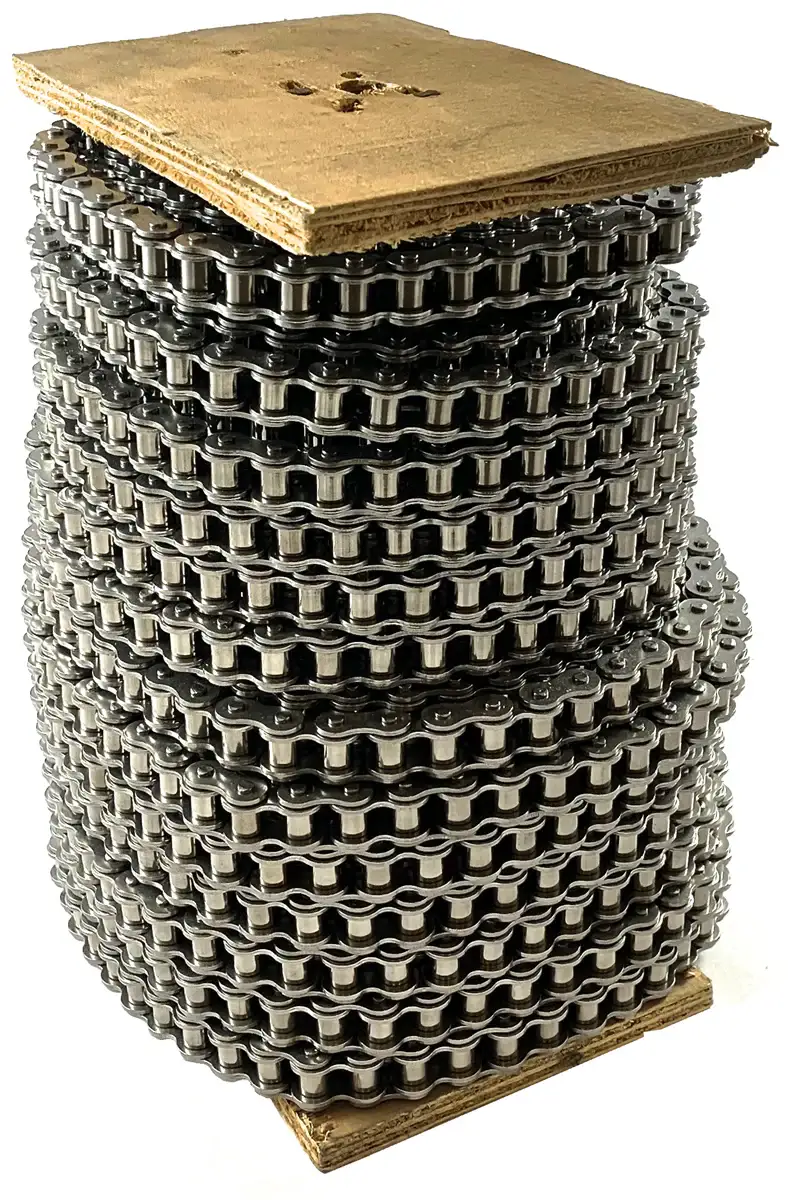

General duty plus #80 stainless steel roller chain on 50ft reel sets its self above other roller chains by utilizing higher-precision components, high-quality 304-grade stainless steel, and ultra-high tensile strength. It's made in accordance with ANSI B29.1 dimensional standards to ensure compatibility with other brands and sprockets. Buying #80SS stainless steel roller chain on a 50ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For more information or to get a quote on stainless steel sprockets as well, please contact us, and we will be happy to assist you.
80 Stainless Steel Chain Dimensions
- Size: 80SS
- Pitch (P): 1.000"
- Roller Diameter (D1): 0.625"
- Width Between Inner Plates (B1): 0.625"
- Pin Diameter (D2): 0.312"
- Pin Length (LR): 1.34"
- Pin Length (LC): 1.54"
- Inner Plate Height (H2): 0.95"
- Plate Thickness (T): 0.125"
- Tensile Strength: 10,680 LBS
- Weight: 1.8 LBS/ FT
Feature
- High-Quality Chain
- Riveted Construction
- Anti-Corrosive
- Conforms to ANSI Standards
- Size: 80SS
- Pitch (P): 1.000"
- Roller Diameter (D1): 0.625"
- Width Between Inner Plates (B1): 0.625"
- Pin Diameter (D2): 0.312"
- Pin Length (LR): 1.34"
- Pin Length (LC): 1.54"
- Inner Plate Height (H2): 0.95"
- Plate Thickness (T): 0.125"
- Tensile Strength: 10,680 LBS
- Weight: 1.8 LBS/ FT
