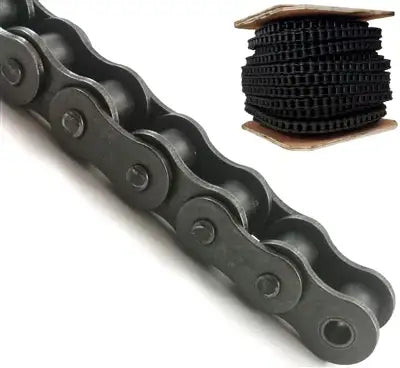

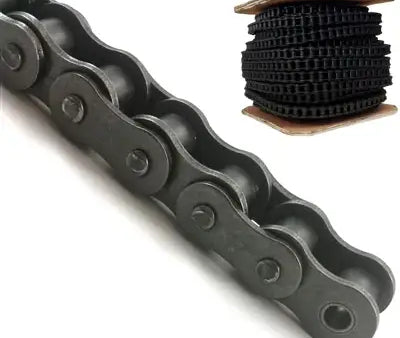

General Duty Plus #80 Roller Chain - 50ft Reel

50ft reels of #80 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. General Duty Plus #80 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #80 chain sprockets. All General Duty Plus series roller chains are manufactured using heat-treated and shot peened precision components and are supplied with a high-quality lubricant already applied from the factory.

General Duty Plus #80 Roller Chain Dimensions

• Pitch (P): 1.000"
• Roller Width (W): 0.625"
• Roller Diameter (D): 0.625"
• Overall Width (A): 1.289"
• Plate Height (H): 0.949"
• Plate Thickness (T): 0.126"
• Pin Diameter (E): 0.313"
• Tensile Strength: 17,000 LBS
• Weight Per Foot: 1.87 LBS
