#60 Mega Stainless Steel Roller Chain - 10ft Box
SKU: GDP-60SS-MEGA-10FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
#60 Mega Stainless Steel Roller Chain - 10ft Box Description/Features
#60 Mega Stainless Steel Roller Chain - 10ft Box Specifications

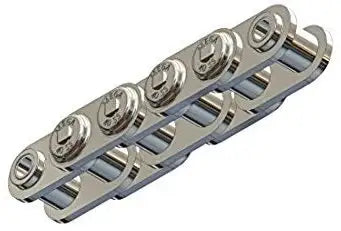

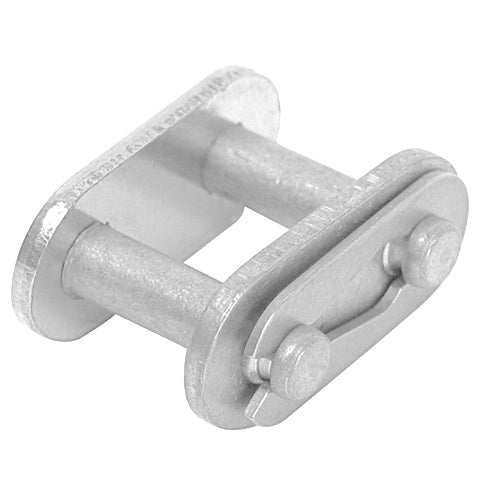

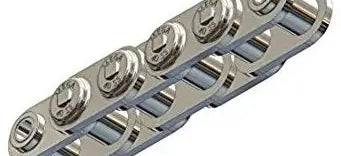

This #60 Mega Series stainless steel roller chain bar far is the strongest stainless steel roller chain available. Wear performance for this chain has increased dramatically by 35-50% due to the larger bearing areas and unique labyrinth seal design. Each part that is in this stainless steel roller chain is constructed out of a premium quality ANSI 304-grade austenitic stainless steel that is excellent for heat and it is highly corrosion resistant. The strength of this chain even challenges the strength of the premium carbon steel roller chains. This chain is commonly in stock in 10ft boxes including one connecting link per box. The chain will work on ANSI standard sprockets, if you have any additional questions or need more information give us a call!
Dimensions:
Dimensions:
- Chain Size: #60SS Mega
- Tensile Strength: 9,700lbs
- Working Load: 570lbs
- Pitch (P): 0.750
- Roller Width (W): 0.500
- Roller Diameter (R): 0.469
- Overall Chain Width (F): 1.180
- Link Plate Height (H): 0.713
- Link Plate Thickness (T): 0.094
- Pin Diameter (D): 0.234
- Specifications Met: ANSI Standards
- Chain Size: #60SS Mega
- Tensile Strength: 9,700lbs
- Working Load: 570lbs
- Pitch (P): 0.750
- Roller Width (W): 0.500
- Roller Diameter (R): 0.469
- Overall Chain Width (F): 1.180
- Link Plate Height (H): 0.713
- Link Plate Thickness (T): 0.094
- Pin Diameter (D): 0.234
- Specifications Met: ANSI Standards
