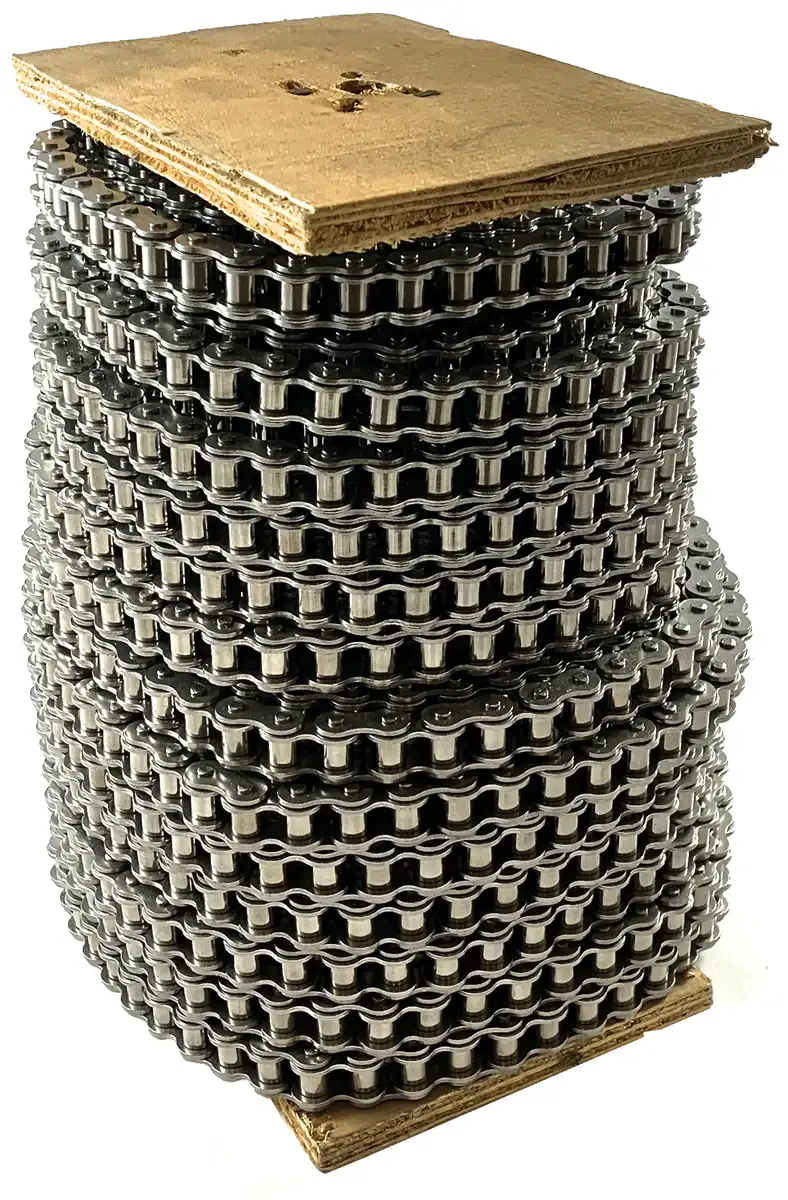

General Duty Plus #50SS Stainless Steel Roller Chain - 50ft Reel
$1,234.99
SKU: GDP-50SS-50FT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
General Duty Plus #50SS Stainless Steel Roller Chain - 50ft Reel Description/Features
General Duty Plus #50SS Stainless Steel Roller Chain - 50ft Reel Specifications
General duty plus #50 stainless steel roller chain on 50ft reel sets its self above other roller chains by utilizing higher-precision components, high-quality 304-grade stainless steel, and ultra-high tensile strength. It's made in accordance with ANSI B29.1 dimensional standards to ensure compatibility with other brands and sprockets. Buying #50SS stainless steel roller chain on a 50ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For more information or to get a quote on stainless steel sprockets as well, please contact us, and we will be happy to assist you.
50 Stainless Steel Chain Dimensions
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 5,000 LBS
- Weight: 0.7 LBS/ FT
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 5,000 LBS
- Weight: 0.7 LBS/ FT
