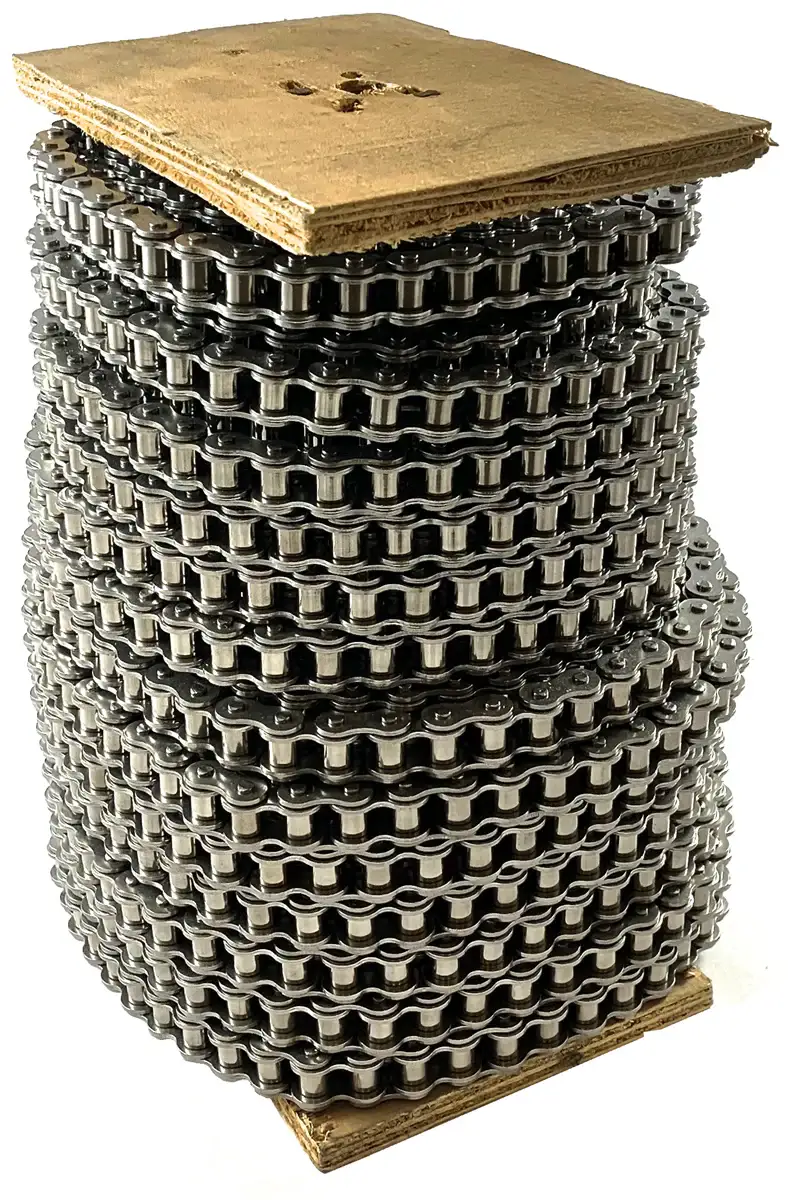

General Duty Plus #50SS Stainless Steel Roller Chain - 100ft Reel
Login to Request a Quote
General duty plus #50 stainless steel roller chain on 100ft reel sets its self above other roller chains by utilizing higher-precision components, high-quality 304-grade stainless steel, and ultra-high tensile strength. It's made in accordance with ANSI B29.1 dimensional standards to ensure compatibility with other brands and sprockets. Buying #50SS stainless steel roller chain on a 100ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For more information or to get a quote on stainless steel sprockets as well, please contact us, and we will be happy to assist you.
50 Stainless Steel Chain Dimensions
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 5,000 LBS
- Weight: 0.7 LBS/ FT
- Size: 50SS
- Pitch (P): 0.625"
- Roller Diameter (D1): 0.400"
- Width Between Inner Plates (B1): 0.375"
- Pin Diameter (D2): 0.208"
- Pin Length (LR): 0.86"
- Pin Length (LC): 1.01"
- Inner Plate Height (H2): 0.59"
- Plate Thickness (T): 0.080"
- Tensile Strength: 5,000 LBS
- Weight: 0.7 LBS/ FT
