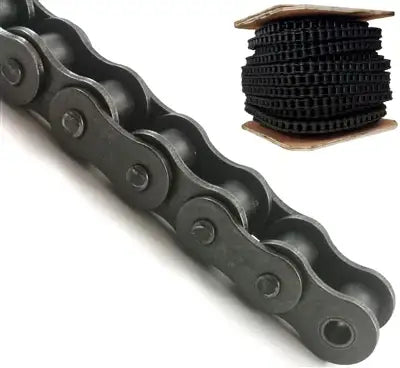

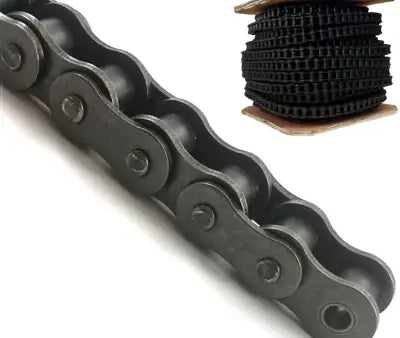

General Duty Plus #50 Roller Chain - 50ft Reel
Note:
Custom Cut to Length Chain Also Available
$296.99
SKU: GDP-50RC-50FT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
General Duty Plus #50 Roller Chain - 50ft Reel Features
50ft reels of #50 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. General Duty Plus #50 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #50 chain sprockets. All General Duty Plus series roller chains are manufactured using heat-treated and shot peened precision components and are supplied with a high-quality lubricant already applied from the factory.
General Duty Plus #50 Roller Chain Dimensions
- Pitch (P): 0.625"
- Roller Width (W): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (A): 0.800"
- Plate Height (H): 0.591"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Tensile Strength: 6,600 LBS
- Weight Per Foot: 0.713 LBS
