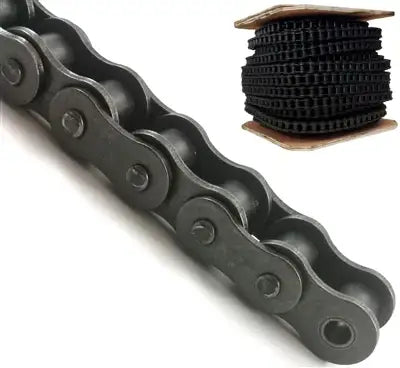

General Duty Plus #25 Roller Chain - 500ft Reel

500ft reels of #25 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. General Duty Plus #25 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #25 chain sprockets. All General Duty Plus series roller chains are manufactured using heat-treated and shot peened precision components and are supplied with a high-quality lubricant already applied from the factory.

General Duty Plus #25 Roller Chain Dimensions

• Pitch (P): 0.250"
• Bushing Width (W): 0.125"
• Bushing Diameter (D): 0.130"
• Overall Width (A): 0.307"
• Plate Height (H): 0.232"
• Plate Thickness (T): 0.028"
• Pin Diameter (E): 0.091"
• Tensile Strength: 900 LBS
• Weight Per Foot: 0.09 LBS
