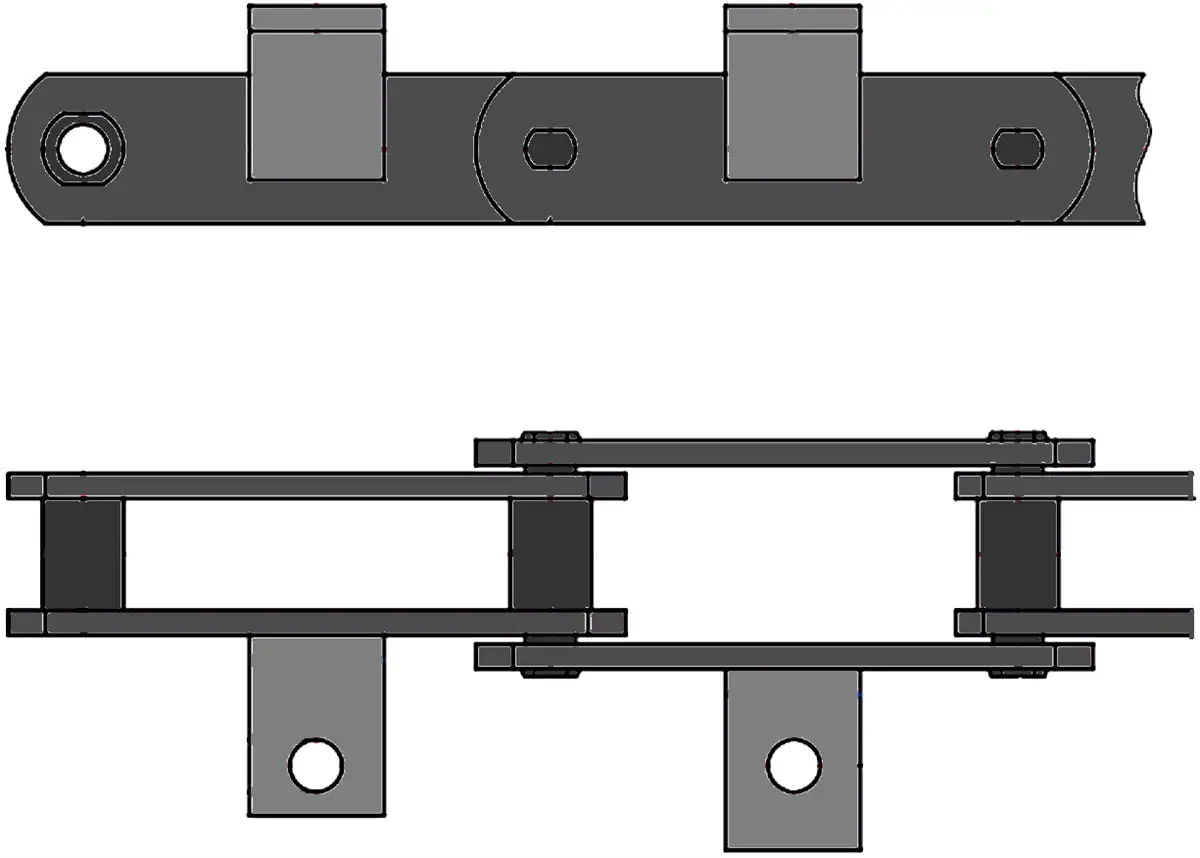

FV63-63 A1 Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: FV63-63-A1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
FV63-63 A1 Attachment Features
FV63-63 A1 Attachment Specifications
FV63-63 A1 attachment is a one hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV63-63 A1 attachment contact our customer support team and we will be happy to assist you.
FV63-63 A1 Attachment Dimensions
- Attachment Size: FV63-63-A1
- Pitch (P): 63mm
- Dimension (A): 30mm
- Dimension (B): 34mm
- Bolt Hole (D): 8.4mm
- Angle (S): 30X4
- Dimension (E): 50mm
- Dimension (C): 40mm
- Attachment Weight: 0.063kG
- Attachment Size: FV63-63-A1
- Pitch (P): 63mm
- Dimension (A): 30mm
- Dimension (B): 34mm
- Bolt Hole (D): 8.4mm
- Angle (S): 30X4
- Dimension (E): 50mm
- Dimension (C): 40mm
- Attachment Weight: 0.063kG
