FV63-160 A2 Attachment Description/Features
FV63-160 A2 Attachment Specifications

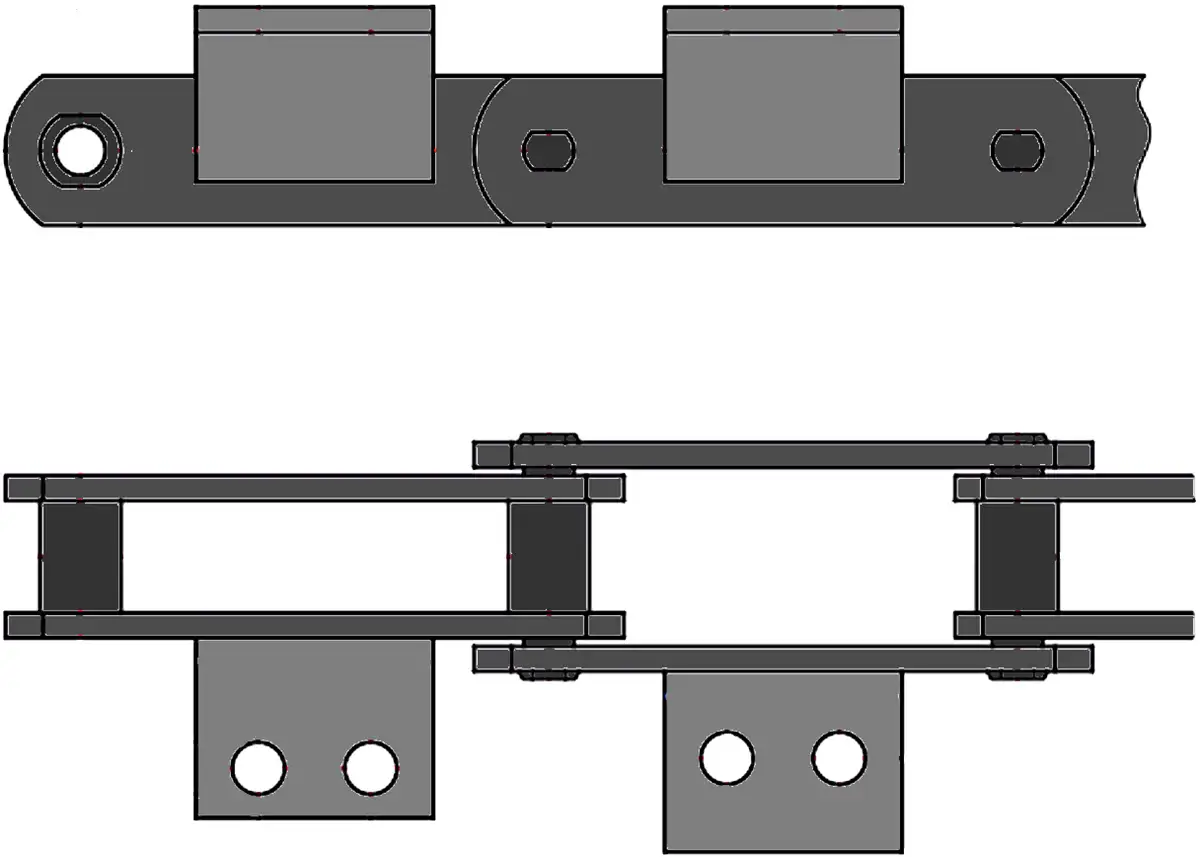

FV63-160 A2 attachment is a two hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV63-160 A2 attachment contact our customer support team and we will be happy to assist you.
FV63-160 A2 Attachment Dimensions
- Attachment Size: FV63-160-A2
- Pitch (P): 160mm
- Dimension (A): 30mm
- Dimension (B): 34mm
- Bolt Hole (D): 8.4mm
- Angle (S): 30X4
- Dimension (E): 50mm
- Dimension (F): 50mm
- Dimension (C): 70mm
- Attachment Weight: 0.170kG
- Attachment Size: FV63-160-A2
- Pitch (P): 160mm
- Dimension (A): 30mm
- Dimension (B): 34mm
- Bolt Hole (D): 8.4mm
- Angle (S): 30X4
- Dimension (E): 50mm
- Dimension (F): 50mm
- Dimension (C): 70mm
- Attachment Weight: 0.170kG
