FV40-50 A1 Attachment
Note:
This Chain Typically Takes 12-14 Weeks to Manufacture But Expediting Options Available
SKU: FV40-50-A1-ATTACHMENT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
FV40-50 A1 Attachment Description/Features
FV40-50 A1 Attachment Specifications

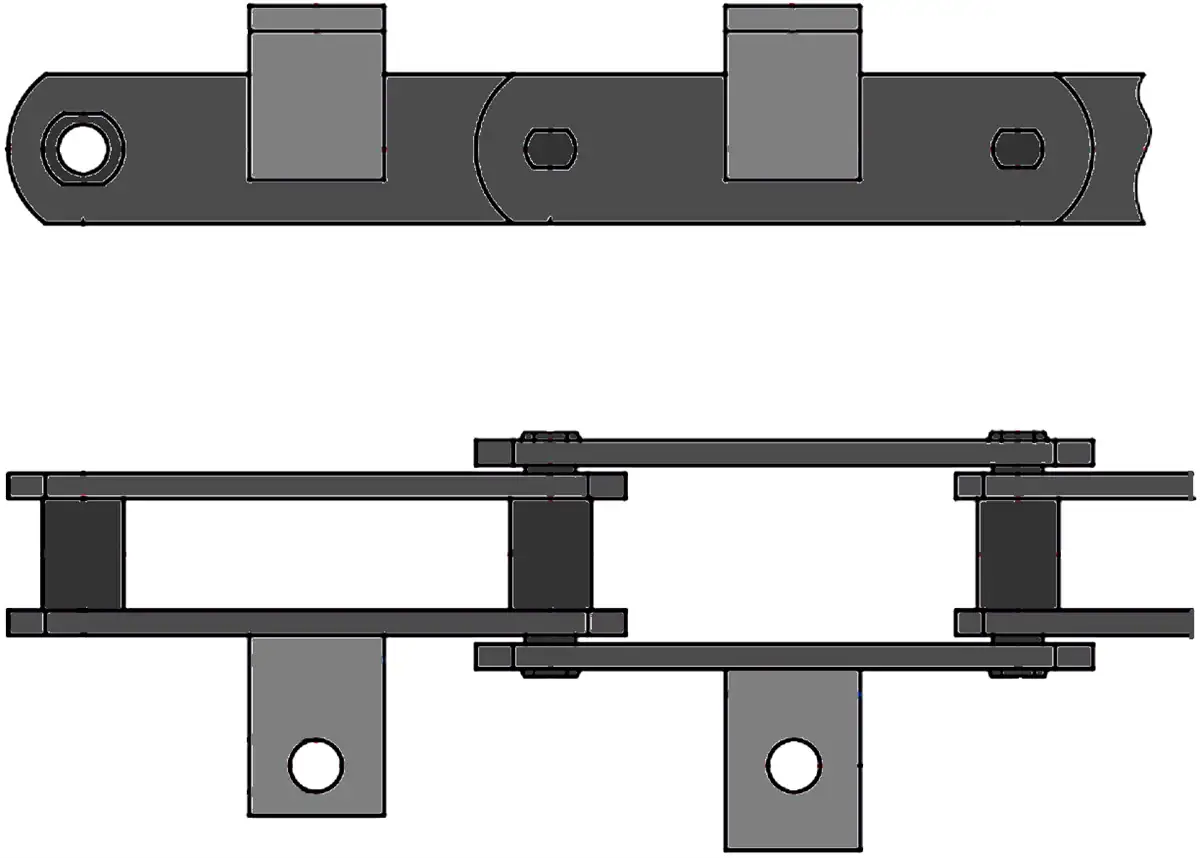

FV40-50 A1 attachment is a one hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV40-50 A1 attachment contact our customer support team and we will be happy to assist you.
FV40-50 A1 Attachment Dimensions
- Attachment Size: FV40-50-A1
- Pitch (P): 50mm
- Dimension (A): 20mm
- Dimension (B): 25mm
- Bolt Hole (D): 6.5mm
- Angle (S): 25X3
- Dimension (E): 64mm
- Dimension (C): 45mm
- Attachment Weight: 0.050kG
- Attachment Size: FV40-50-A1
- Pitch (P): 50mm
- Dimension (A): 20mm
- Dimension (B): 25mm
- Bolt Hole (D): 6.5mm
- Angle (S): 25X3
- Dimension (E): 64mm
- Dimension (C): 45mm
- Attachment Weight: 0.050kG
