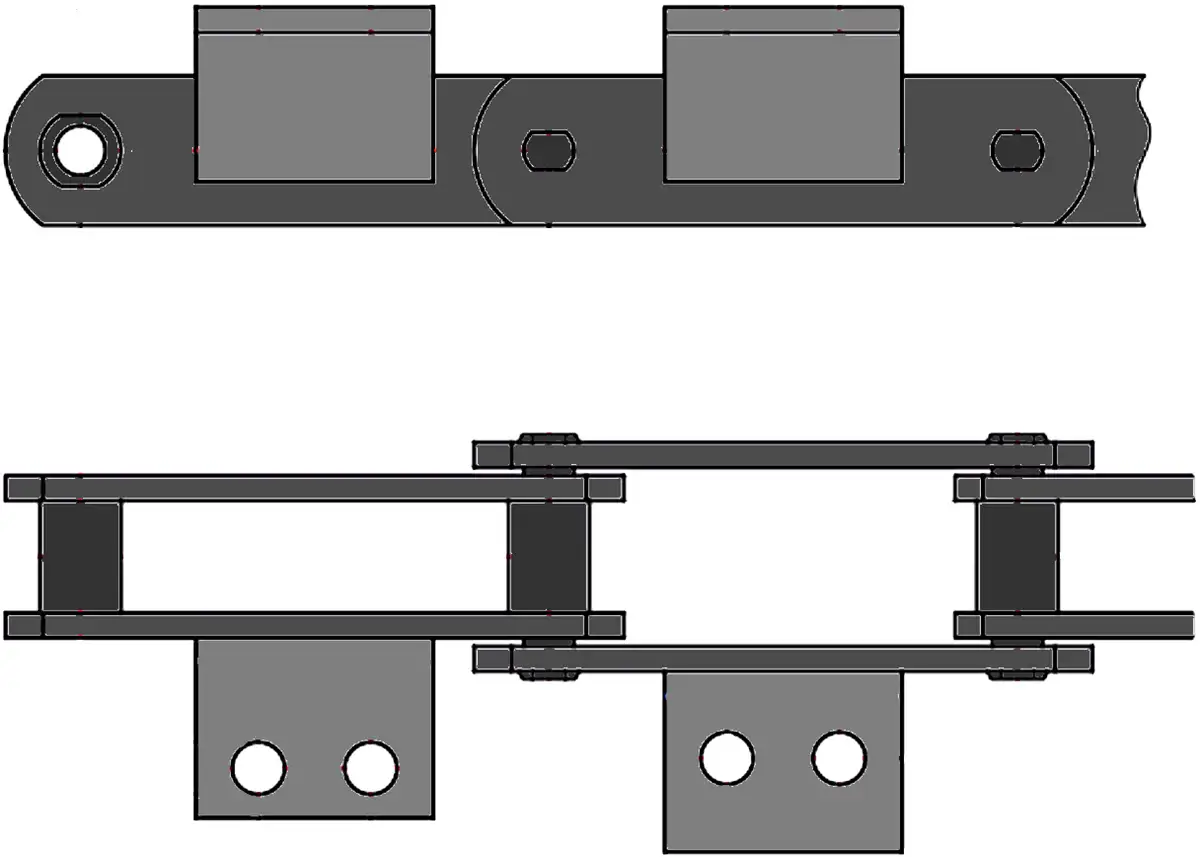

FV250-250 A2 Attachment
Note:
This Chain Typically Takes 12-14 Weeks to Manufacture But Expediting Options Available
SKU: FV250-250-A2-ATTACHMENT
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
FV250-250 A2 Attachment Description/Features
FV250-250 A2 Attachment Specifications
FV250-250 A2 attachment is a two hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV250-250 A2 attachment contact our customer support team and we will be happy to assist you.
FV250-250 A2 Attachment Dimensions
- Attachment Size: FV250-250-A2
- Pitch (P): 250mm
- Dimension (A): 55mm
- Dimension (B): 69mm
- Bolt Hole (D): 14mm
- Angle (S): 60X8
- Dimension (E): 106mm
- Dimension (F): 80mm
- Dimension (C): 110mm
- Attachment Weight: 0.850kG
- Attachment Size: FV250-250-A2
- Pitch (P): 250mm
- Dimension (A): 55mm
- Dimension (B): 69mm
- Bolt Hole (D): 14mm
- Angle (S): 60X8
- Dimension (E): 106mm
- Dimension (F): 80mm
- Dimension (C): 110mm
- Attachment Weight: 0.850kG
