FV140-160 A2 Attachment
SKU: FV140-160-A2-ATTACHMENT
Only 0 left in stockItem is out of stock
Item is unavailable
FV140-160 A2 Attachment Features
FV140-160 A2 Attachment Specifications

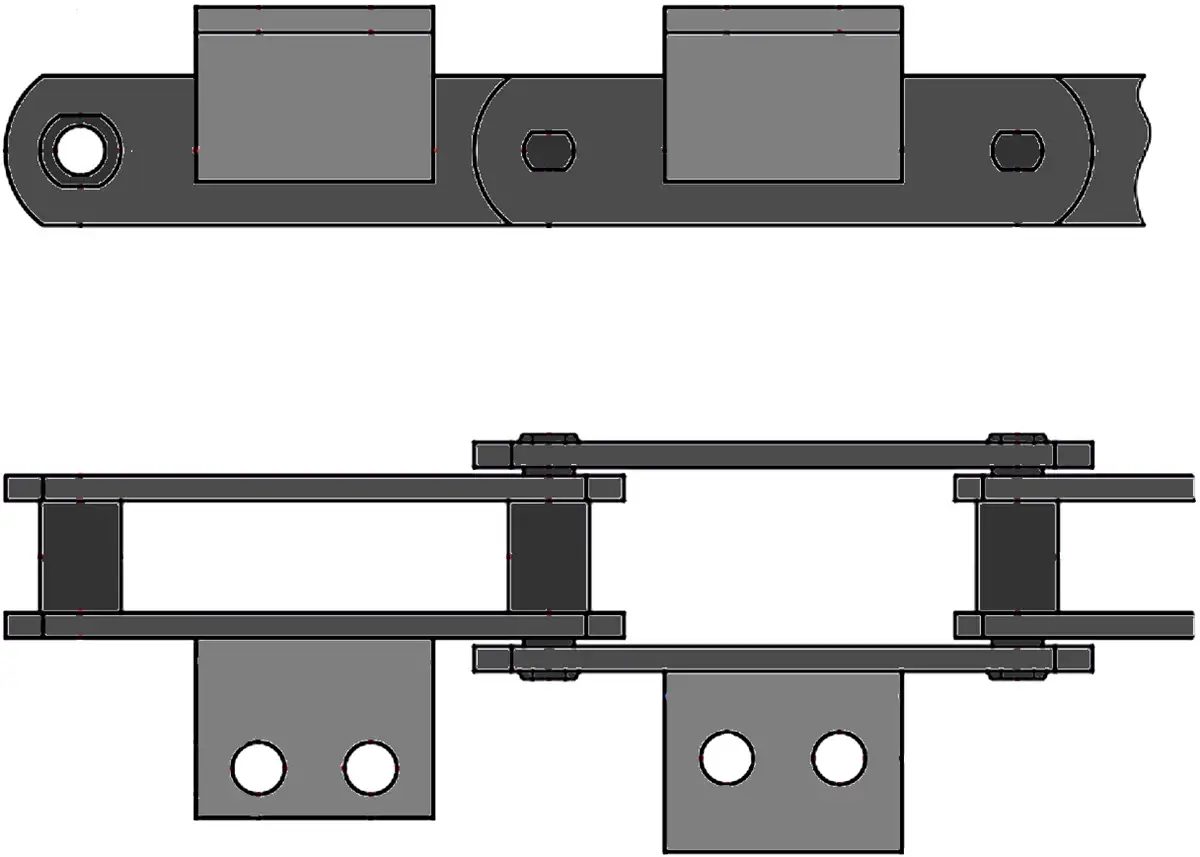

FV140-160 A2 attachment is a two hole, one side FV series conveyor chain attachment. We supply FV chain with this attachment in any configuration/ spacing required. To get a quote or for more information on the FV140-160 A2 attachment contact our customer support team and we will be happy to assist you.
FV140-160 A2 Attachment Dimensions
- Attachment Size: FV140-160-A2
- Pitch (P): 160mm
- Dimension (A): 45mm
- Dimension (B): 50mm
- Bolt Hole (D): 11mm
- Angle (S): 50X6
- Dimension (E): 81mm
- Dimension (F): 50mm
- Dimension (C): 75mm
- Attachment Weight: 0.360kG
- Attachment Size: FV140-160-A2
- Pitch (P): 160mm
- Dimension (A): 45mm
- Dimension (B): 50mm
- Bolt Hole (D): 11mm
- Angle (S): 50X6
- Dimension (E): 81mm
- Dimension (F): 50mm
- Dimension (C): 75mm
- Attachment Weight: 0.360kG
