F120B20 Sprocket | Four Strand F120B20 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: F120B20-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
F120B20 Sprocket | Four Strand F120B20 Sprocket Features
F120B20 Sprocket | Four Strand F120B20 Sprocket Specifications

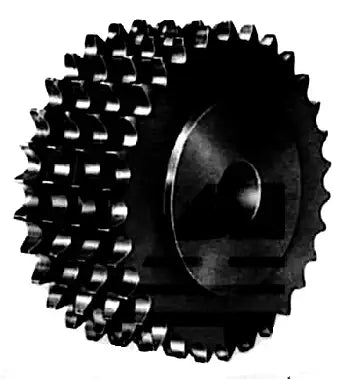

F120B20 Sprocket is a four-strand B-Hub roller chain sprocket with 20 teeth and a stock bore. Our quad strand F120B20 sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. Besides the sprocket, we also stock 120-4 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
F120B20 Sprocket Dimensions
- Sprocket Size: F120B20
- Tooth Count: 20
- Outside Diameter (O.D.): 10.370"
- Sprocket Type: B
- Stock Bore: 2-3/16"
- Maximum Recommended Bore: 4-3/8"
- Hub Diameter (HD): 6-1/2"
- Length Thru Bore (LTB): 8"
- Sprocket Weight: 122.0 LBS
- Sprocket Size: F120B20
- Tooth Count: 20
- Outside Diameter (O.D.): 10.370"
- Sprocket Type: B
- Stock Bore: 2-3/16"
- Maximum Recommended Bore: 4-3/8"
- Hub Diameter (HD): 6-1/2"
- Length Thru Bore (LTB): 8"
- Sprocket Weight: 122.0 LBS
