Economy Plus #50 Roller Chain - 50ft Reel
Note:
Custom Cut to Length Chain Also Available
SKU: ECONOMY-50RC-50FT-REEL
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote

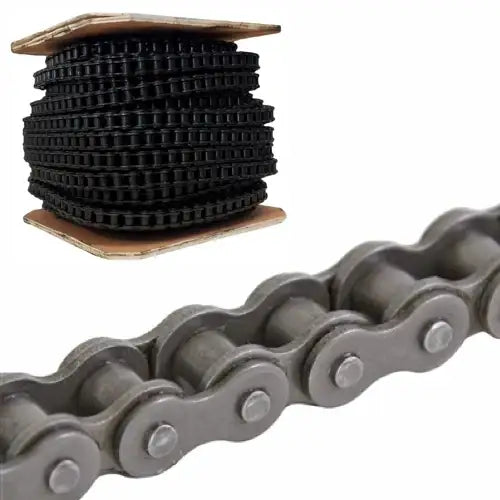

Economy Plus #50 Roller Chain - 50ft Reel Features
50ft reels of #50 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. Economy Plus #50 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #50 chain sprockets. All Economy Plus series roller chains are manufactured using heat-treated precision components and are supplied pre-lubricated from the factory.
Economy Plus #50 Roller Chain Dimensions
- Pitch (P): 0.625"
- Roller Width (W): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (A): 0.800"
- Plate Height (H): 0.591"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Tensile Strength: 6,100 LBS
- Weight Per Foot: 0.713 LBS
