Roller Chain > More Roller Chains > Double Pitch Roller Chain > C2100H Conveyor Chain

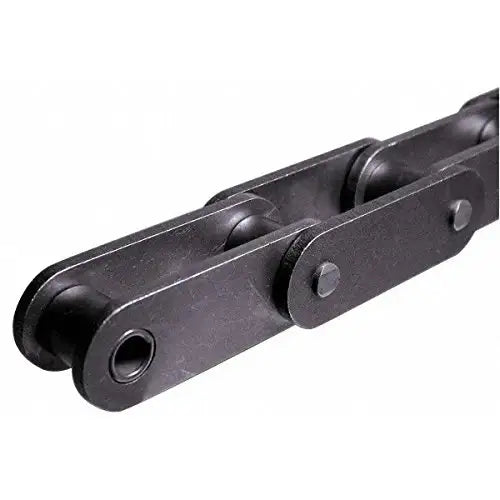

C2100H Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: ECO-C2100H-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2100H Roller Chain - 10ft Box Features
C2100H Roller Chain - 10ft Box Specifications
C2100H Roller Chain is Also Commonly Known As C2100H Double Pitch Roller Chain and C2100H Conveyor Chain. This C2100H Roller Chain fully meets all ANSI Standards and is a durable and dependable product. Economy Plus C2100H double pitch roller chain has a tensile strength of 28,000lbs and is supplied in 10ft boxes including one connecting link, but alternate lengths are available per request. We also offer additional connecting links and offset links, along with a full line of C2100H sprockets and attachments. For more information about C2100H roller chain or to get a quote on sprockets, or attachments give us a call!
When looking for C2100H conveyor chain (photo below on the left) it is important to not mix it up with C2102H roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2100H".
VS.
Phone: (407) 347-3519
Email:sales@usarollerchain.com
C2100H Roller Chain Dimensions
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Overall Width (F): 1.666"
- Tensile Strength: 28,000lbs
- Weight: 2.42 lbs/ft
When looking for C2100H conveyor chain (photo below on the left) it is important to not mix it up with C2102H roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2100H".
VS.Phone: (407) 347-3519
Email:
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 0.750"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Overall Width (F): 1.666"
- Tensile Strength: 28,000lbs
- Weight: 2.42 lbs/ft
