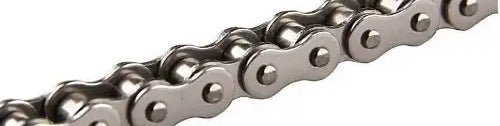

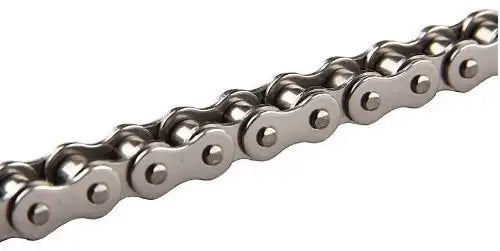

Anti Corrosive #41 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
In corrosive, food-grade, or extreme temperature applications a standard carbon-steel chain won't last due to corrosion or the general elements of the application. This is where a #41 stainless steel roller chain is recommended due to the metal composition of the stainless steel. It also has the broadest operating temperature range of any standard "on the shelf" roller chain. More specifically, the ANSI 41 chain is designed for applications that need a 1/2" pitch chain with a narrow profile and a light-weight such as gate operators, doors, medium duty conveyors, etc..
304 Stainless Steel Composition:
Carbon - 0.080%
Manganese - 2.000%
Phosphorus - 0.045%
Sulfur - 0.030%
Silicon - 0.750%
Chromium -18.000% - 20.000%
Nickel - 8.000% - 10.500%
Aluminum - 0.100%
Chain Temperature Range: -200° to + 400°
Specifically, our #41 stainless steel is manufactured per the American National Standards Institute (ANSI) B29.1 standards guidelines and dimensions. This means that it directly interchanges with other brands and manufacturers. Though dimensionally equivalent, our 41 stainless chain surpasses others with the use of solid heat-treated components and exact tolerances for not only an extended working life but also better overall performance. Typically this chain will be supplied in a 10ft box including one connecting link but we also stock 50ft, 100ft, and up to 250ft reels. For even better performance and higher strength chains check out our Premier 41SS roller chain.
41 Stainless Steel Roller Chain Dimensions
Pitch (P): 0.500"
Roller Width (W): 0.250"
Roller Diameter (D): 0.306"
Overall Width (A): 0.522"
Plate Height (H): 0.390"
Plate Thickness (T): 0.050"
Pin Diameter (E): 0.141"
Tensile Strength: 1,600 LBS
Weight Per Foot: 0.28 LBS/ FT
Interchanges: 41SS-1R, RS41SS, RS41SS-1R, 41SS-1, 41 SS
Besides the chain, we have 41 stainless steel chain attachments, stainless steel sprockets, chain breakers, and chain pullers. For more information or for formal quotes, please contact us and we will be happy to assist you.
