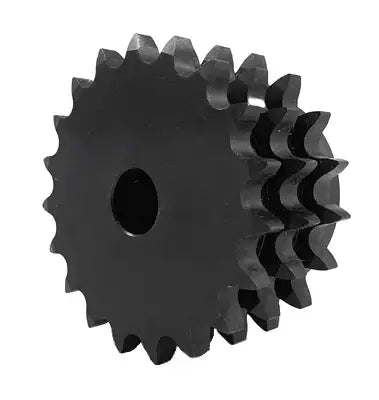

Triple E20B12 Sprocket With Stock Bore

This E20B12 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our E20B12 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our triple E20B12 sprockets such as black-oxide coatings and heat-treated hardened teeth, hardened teeth increases the durability and wear life of the sprocket while a black oxide coating will create an "anti-rust" coating on the sprocket. Besides the 12 tooth sprocket, we also stock a high-quality 20B-3 roller chain and a wide array of roller chain accessories. For more information or to get a quote on E20B12 sprockets, please contact us and one of our sales team members will be happy to assist you.

E20B12 Sprocket Dimensions

• Sprocket Size: E20B12
• Tooth Count: 12
• Pitch Diameter: 122.67mm
• Stock Bore: 25mm
• Maximum Recommended Bore: 60mm
• Hub Diameter (H): 90mm
• Length Thru Bore (L): 115mm
• Sprocket Weight: 6.21 kG
