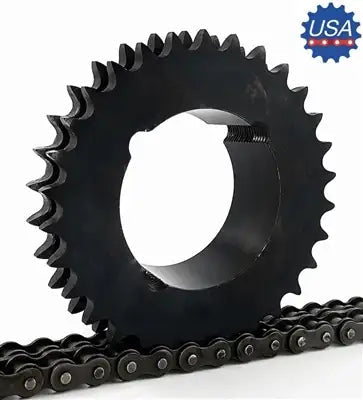

Triple E16BTB23 Sprocket (Taper Bushed)

This E16BTB23 sprocket is a metric taper bushed style roller chain sprocket manufactured under ISO and British Standard 228. and is made to accept a 3535 taper bushing. Our E16BTB23 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. We also offer upgrades on our E16BTB23 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 23 tooth sprocket, we also stock a high-quality 16B-3 roller chain, 3535 bushings, and a wide array of roller chain accessories. For more information or to get a quote on taper bushed E16BTB23 sprockets, please contact us and one of our sales team members will be happy to assist you.

E16BTB23 Sprocket Dimensions

• Sprocket Size: E16BTB23
• Tooth Count: 23
• Pitch Diameter: 186.53mm
• Bushing Size: 3535
• Maximum Bushing Bore Size: 100mm
• Length Thru Bore (L): 65.0mm
• Sprocket Weight: 7.00 kG
