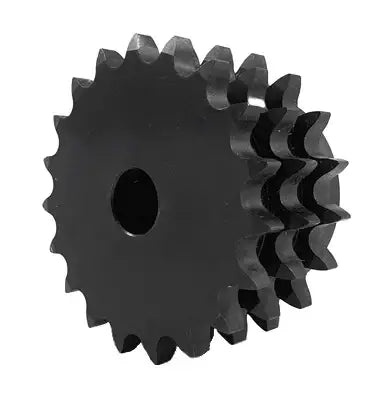

Triple E12B24 Sprocket With Stock Bore

This E12B24 sprocket with a stock bore is a metric roller chain sprocket manufactured under ISO and British Standard 228. Our E12B24 sprockets are made with reliability and performance in mind, so we use high-quality carbon steel (CS) and have the sprocket precision cut to ensure maximum performance and wear life. Besides the stock bore we also can supply these sprockets with a specific plain or finished (has key-way and set screws) bore size. We also offer upgrades on our triple E12B24 sprockets such as black-oxide coatings and heat-treated hardened teeth, though we often have these specific sprockets with those features already added right off the shelf. Besides the 24 tooth sprocket, we also stock a high-quality 12B-3 roller chain and a wide array of roller chain accessories. For more information or to get a quote on E12B24 sprockets, please contact us and one of our sales team members will be happy to assist you.

E12B24 Sprocket Dimensions

• Sprocket Size: E12B24
• Tooth Count: 24
• Pitch Diameter: 145.95mm
• Stock Bore: 20mm
• Maximum Bore: 73mm
• Dimension (H): 110mm
• Dimension (L): 70mm
• Sprocket Weight: 7.17 kg
