Premium Metric 12B-3 Roller Chain - 10ft Box
$504.99
SKU: PREMIUM-12B-3-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premium Metric 12B-3 Roller Chain - 10ft Box Description/Features
Premium Metric 12B-3 Roller Chain - 10ft Box Specifications

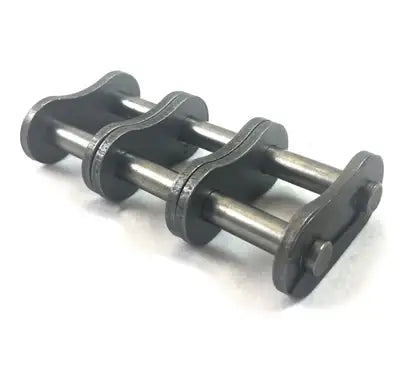

12B-3 roller chain is a 19.05mm pitch triplex (triple-strand) metric roller chain made per ISO and British Standards. As a triple-strand roller chain, it is engineered to operate in demanding applications that other strand widths would be incapable of. What makes our 12B-3 roller chain special is the use of high-grade alloy and carbon steel materials per component and processes like heat-treating and shot peening done to each component before assembly. The chain is also factory pre-loaded to reduce significantly or eliminate initial and long-term elongation. Stacking up these features produces an 12B-3 chain that is more capable and has a superior lifespan than others available. This chain is supplied as a 10ft box, including one connecting link. We also provide 12B-3 roller chain sprockets and tools for making replacement or repairs easier. For additional information or to request a quote for our tier one 12B-3 chain, contact our customer service team, and we will be happy to assist you!
12B-3 Chain Dimensions
- Part #: 12B-3
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 61.70mm
- Connecting Link Overall Width (X): 66.30mm
- Plate Height (H): 16.00mm
- Plate Thickness (T): 1.80mm
- Pin Diameter (L): 5.72mm
- Minimum Breaking Load: 8,841 KGS
- Weight: 3.8 kG/ m
- Part #: 12B-3
- Pitch (P): 19.05mm
- Roller Width (R): 11.68mm
- Roller Diameter (D): 12.07mm
- Overall Width (W): 61.70mm
- Connecting Link Overall Width (X): 66.30mm
- Plate Height (H): 16.00mm
- Plate Thickness (T): 1.80mm
- Pin Diameter (L): 5.72mm
- Minimum Breaking Load: 8,841 KGS
- Weight: 3.8 kG/ m
