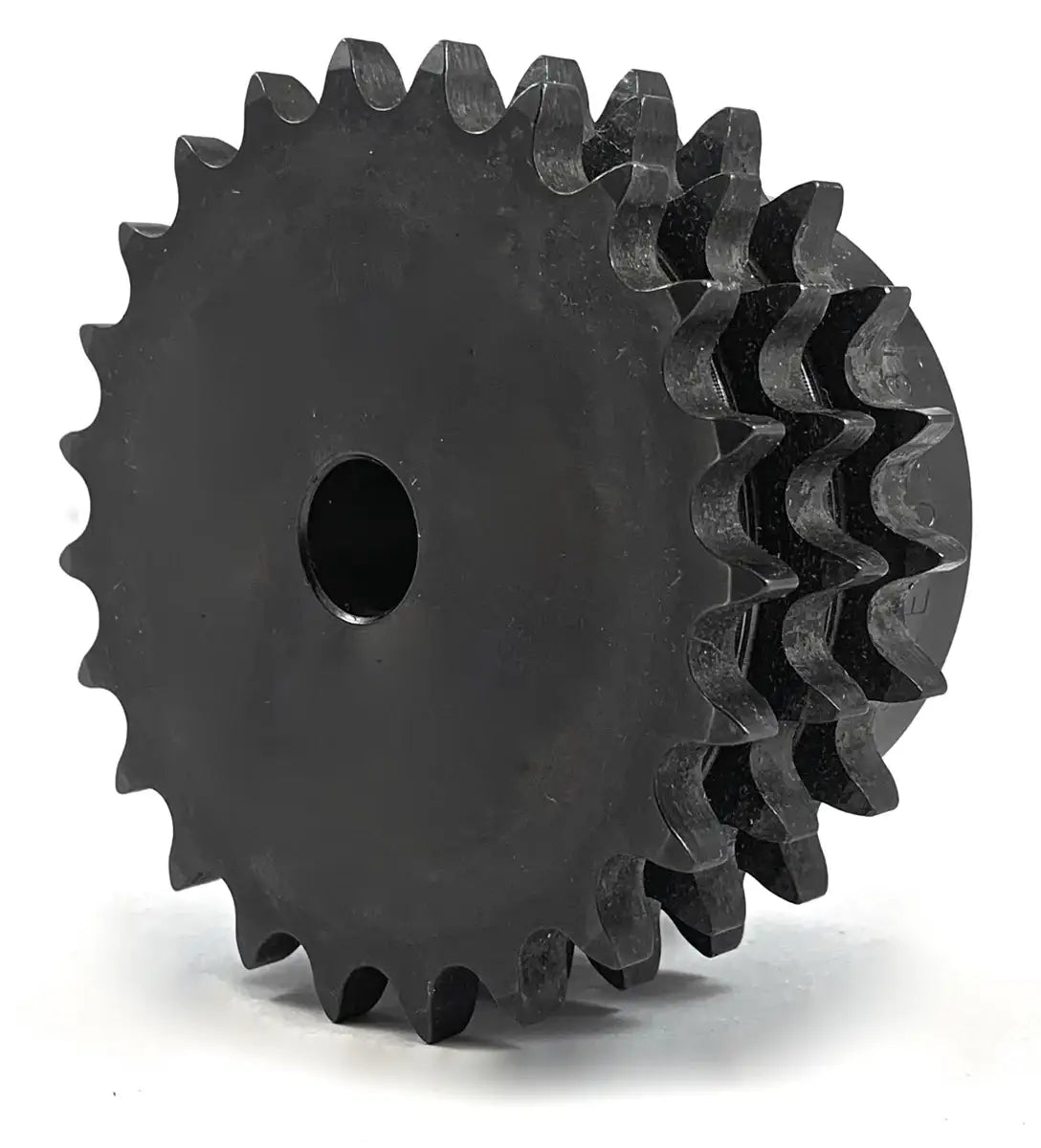

Triple E120B30H Sprocket
Note:
Custom Bore Sizes Available From Our In-House Machine Shop Facility!
SKU: E120B30H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Triple E120B30H Sprocket Description/Features
Triple E120B30H Sprocket Specifications
E120B30H Sprocket is a triple B-Hub roller chain sprocket with 30 teeth and a stock bore. Our triple E120B30H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock 120-3 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E120B30H Sprocket Dimensions
- Sprocket Size: E120B30H
- Tooth Count: 30
- Outside Diameter: 15.17"
- Sprocket Type: B
- Stock Bore: 1-1/2"
- Recommend Maximum Bore: 4-3/4"
- Hub Diameter: 6-1/2"
- Length Thru Bore: 5-7/8"
- Sprocket Weight: 191 LBS
- Sprocket Size: E120B30H
- Tooth Count: 30
- Outside Diameter: 15.17"
- Sprocket Type: B
- Stock Bore: 1-1/2"
- Recommend Maximum Bore: 4-3/4"
- Hub Diameter: 6-1/2"
- Length Thru Bore: 5-7/8"
- Sprocket Weight: 191 LBS
