#50 Double Single Sprocket With 19 Hardened Teeth With Stock Bore, Type A Hub
Note:
Custom Cut to Length Chain Also Available
SKU: DS-50A19H-SPROCKET-SB
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
#50 Double Single Sprocket With 19 Hardened Teeth With Stock Bore, Type A Hub Features
#50 Double Single Sprocket With 19 Hardened Teeth With Stock Bore, Type A Hub Specifications
50A19 Double Single Sprocket

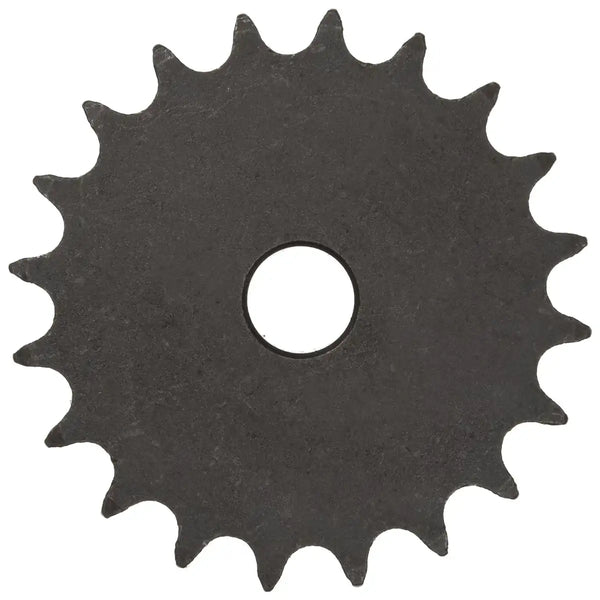

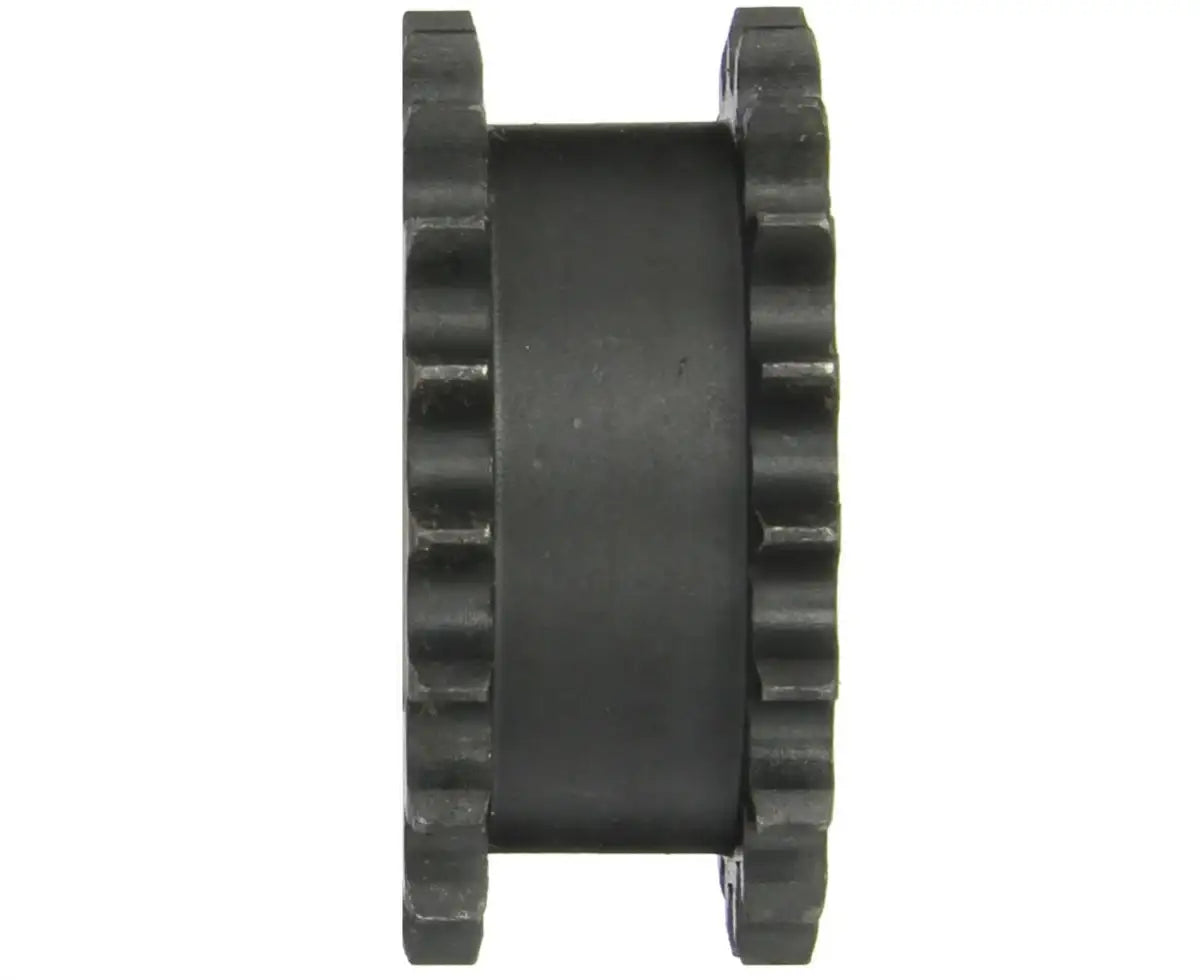

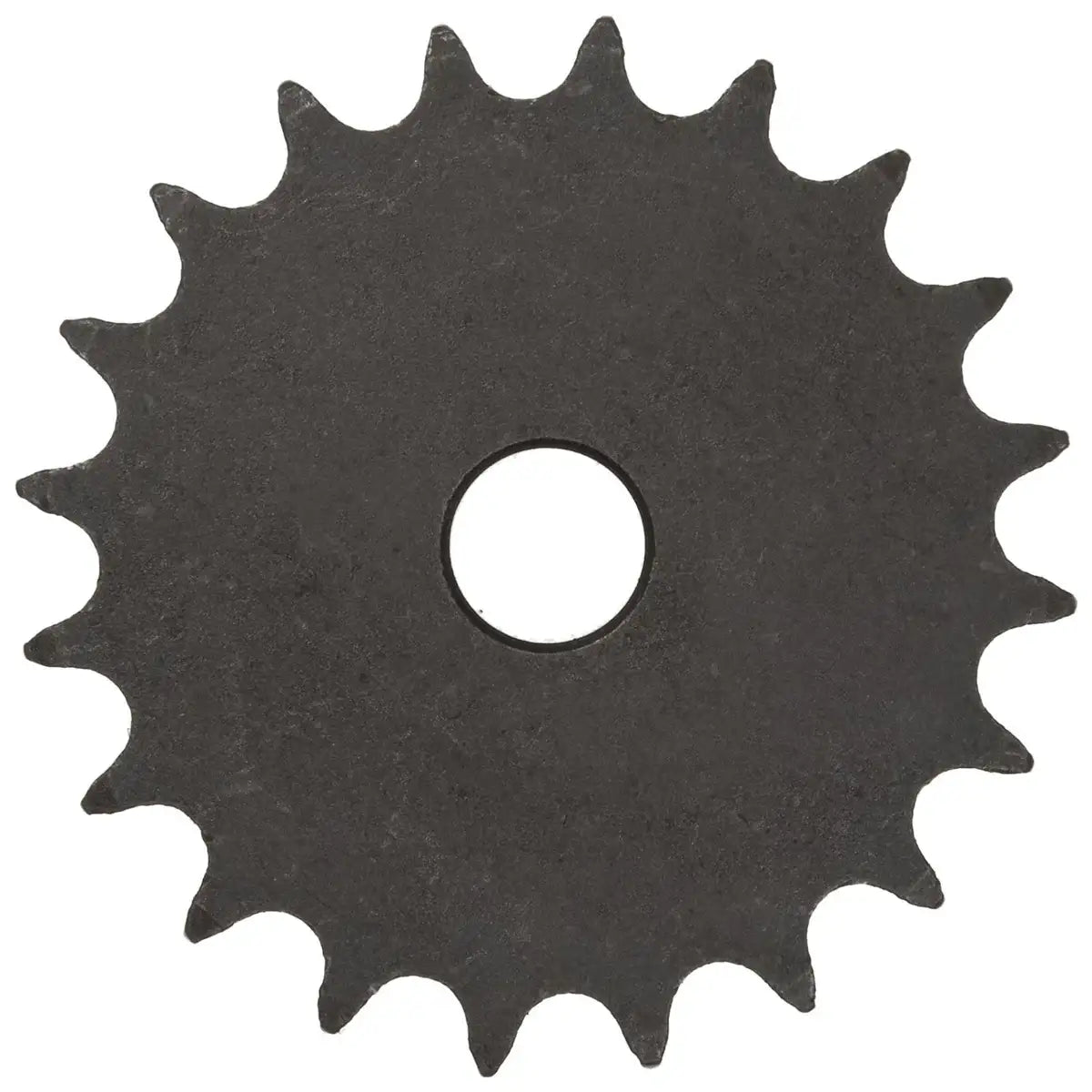

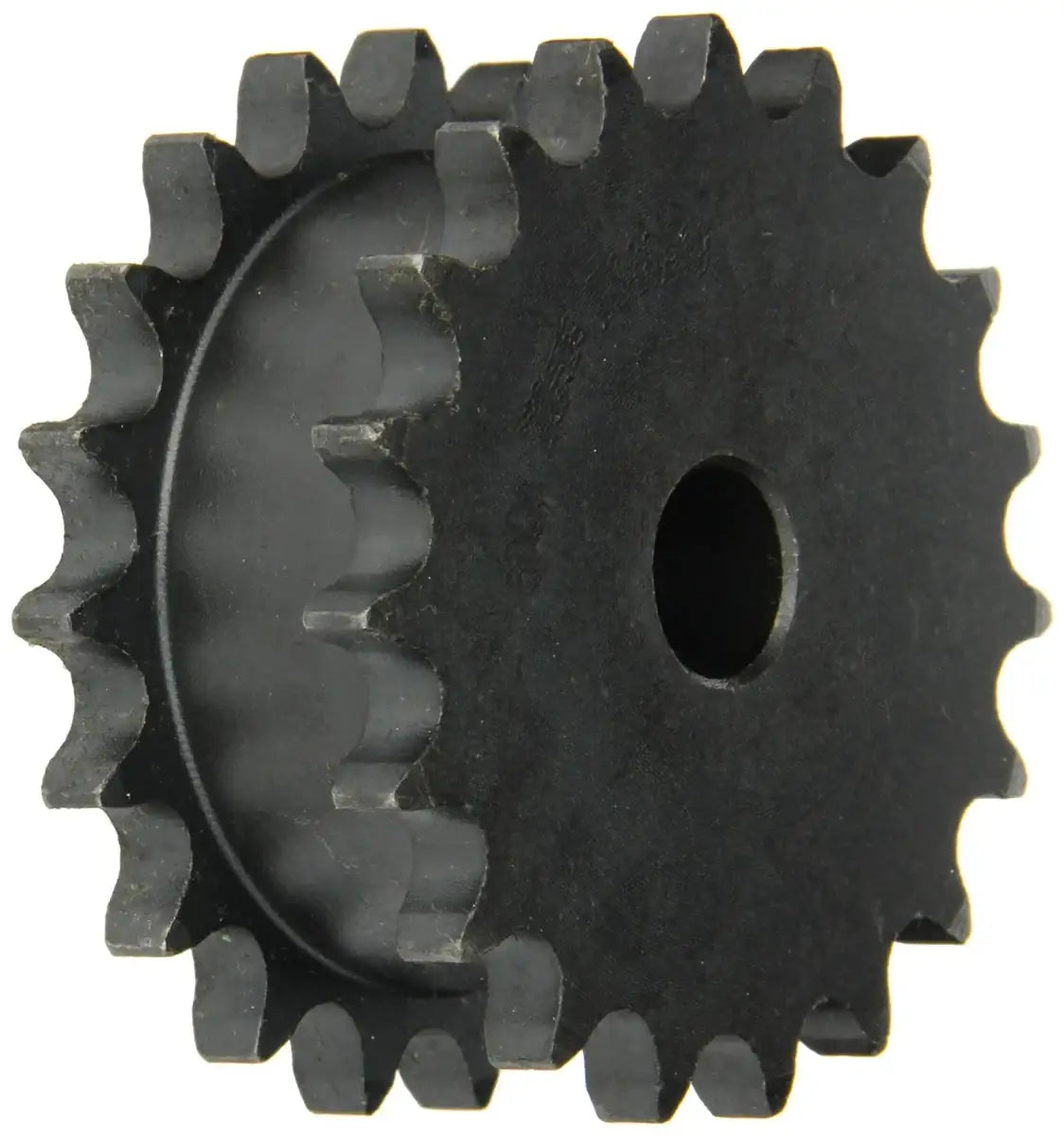

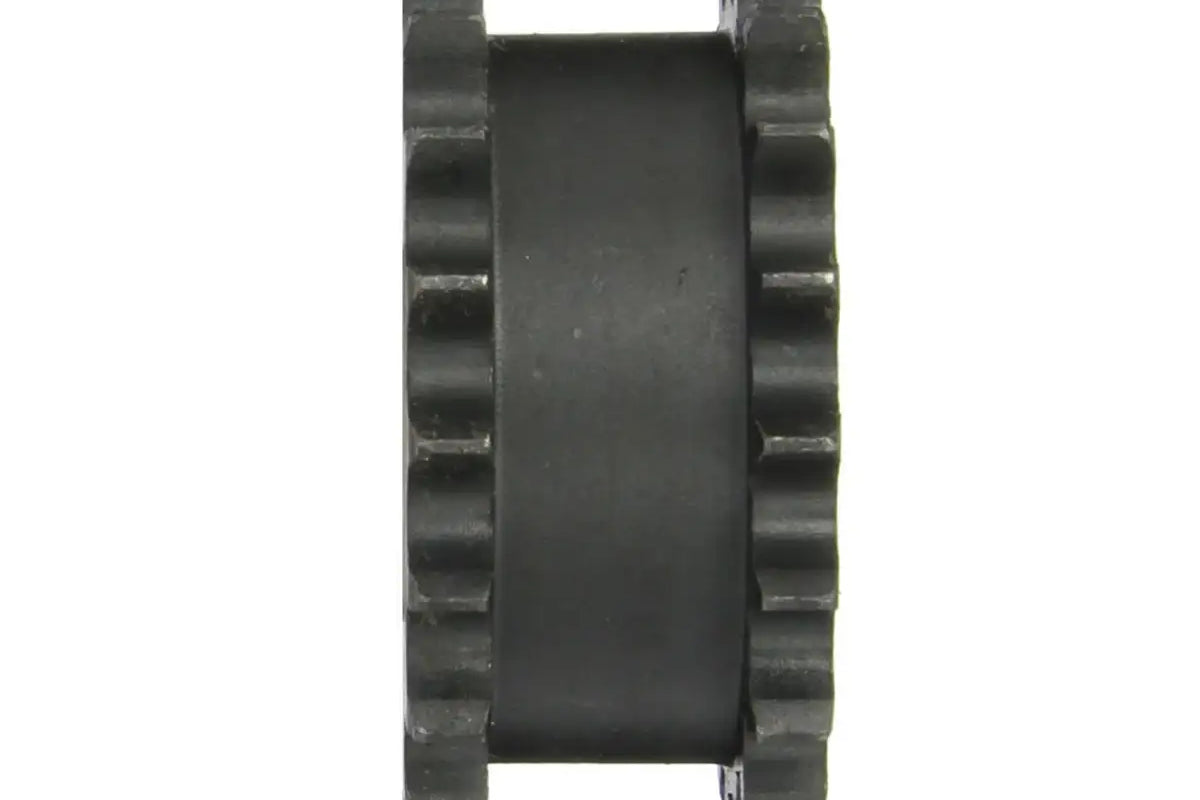

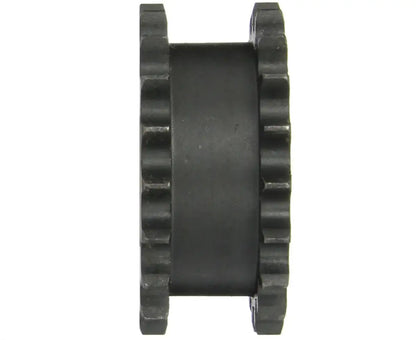

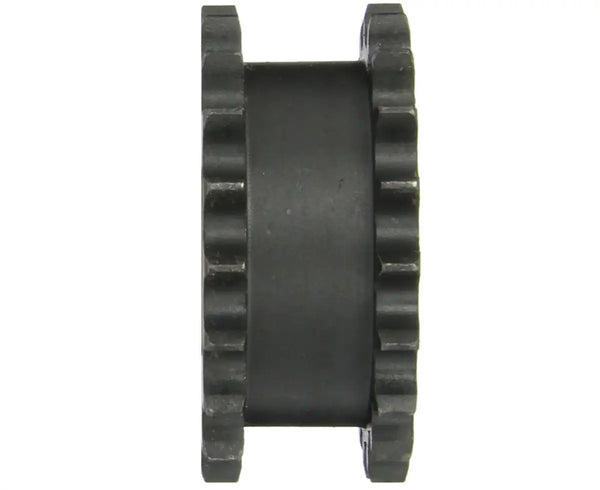

This #50 double single type A sprocket with 19 hardened teeth is manufactured to run two separate strands of #50-1 Roller chain. Made from high quality carbon steel, and this sprocket has heat-treated teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. The double single style accepts two chains side-by-side. USA Roller Chain and Sprockets can have this sprocket bored out ranging from 0.625" bore to 1.166" bore. Please contact us for pricing and availability on double single sprockets.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
This #50 double single type A sprocket with 19 hardened teeth is manufactured to run two separate strands of #50-1 Roller chain. Made from high quality carbon steel, and this sprocket has heat-treated teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. The double single style accepts two chains side-by-side. USA Roller Chain and Sprockets can have this sprocket bored out ranging from 0.625" bore to 1.166" bore. Please contact us for pricing and availability on double single sprockets.
Dimensions:
- Sprocket Part #: DS50A19H
- Number of Teeth: 19
- Outside Diameter: 4.12"
- Minimum Bore: 0.625"
- Maximum Bore: 1.166"
- Dimension (L): 1.656"
- Dimension (C): 1.3125"
- Dimension (E): 3.078"
- Sprocket Weight: 3.7 lbs
Email:
- Sprocket Part #: DS50A19H
- Number of Teeth: 19
- Outside Diameter: 4.12"
- Minimum Bore: 0.625"
- Maximum Bore: 1.166"
- Dimension (L): 1.656"
- Dimension (C): 1.3125"
- Dimension (E): 3.078"
- Sprocket Weight: 3.7 lbs
