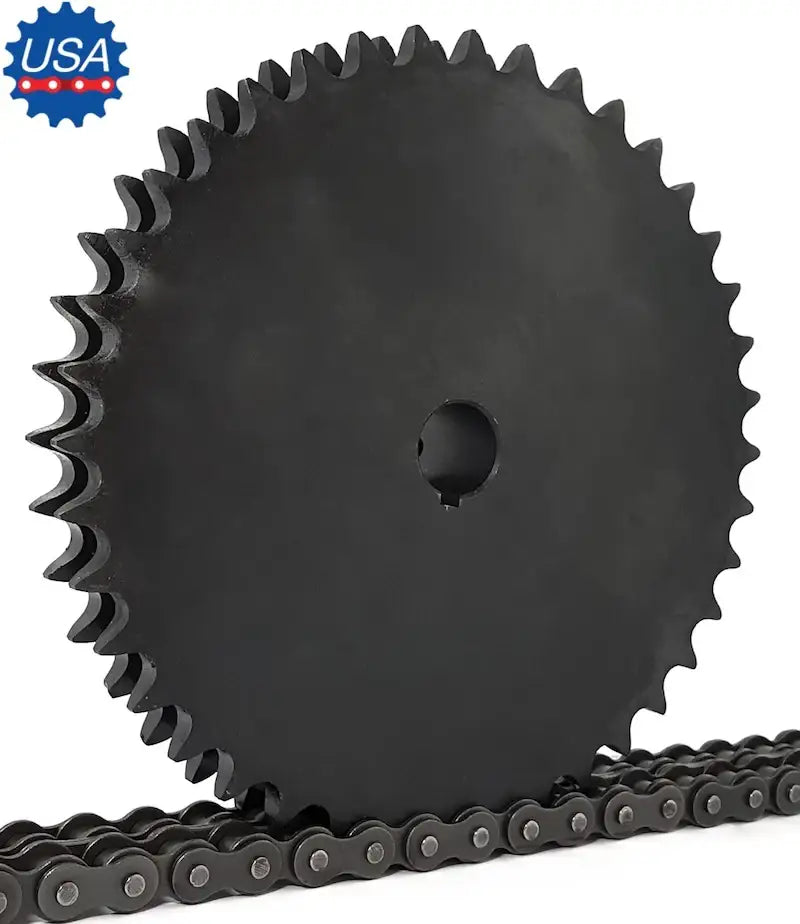

D40BS42 Sprocket With 1-7/16" Finished Bore
Note:
Custom Cut to Length Chain Also Available
SKU: D40BS42-1-716-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
D40BS42 Sprocket With 1-7/16" Finished Bore Features
D40BS42 Sprocket With 1-7/16" Finished Bore Specifications
This D40BS42 sprocket is a durable, premium quality, and precision double sprocket that is supplied with a 1-7/16" finished bore which includes a key-way and two set screws. This double sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40-2 double roller chain and sprocket thus preventing premature wear or breakage. It is also black oxide coated which increases resistance to the environment and will prevent early rust build up. If you don't see the finished bore size you need and are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Sprocket Size: D40BS42
- Tooth Count: 42
- Outside Diameter: 6.970"
- Hub Type: B
- Bore Size: 1-7/16"
- Hub Diameter: 3-3/4"
- Length Thru Bore: 1-3/4"
- Weight: 10.20 LBS
- Interchanges: D40BS42, D40BS42H, HD40BS42
Email:
- Sprocket Size: D40BS42
- Tooth Count: 42
- Outside Diameter: 6.970"
- Hub Type: B
- Bore Size: 1-7/16"
- Hub Diameter: 3-3/4"
- Length Thru Bore: 1-3/4"
- Weight: 10.20 LBS
- Interchanges: D40BS42, D40BS42H, HD40BS42
