D100P11H Sprocket (Taper Bushed)

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #100-2 Double Sprockets > #100-2 P-Type Sprockets

D100P11H Sprocket (Taper Bushed)

Note: Custom Cut to Length Chain Also Available
$159.99
SKU: D100P11H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715030221167" , "metafield_value":""}]
D100P11H Sprocket (Taper Bushed) Features
D100P11H Sprocket (Taper Bushed) Specifications

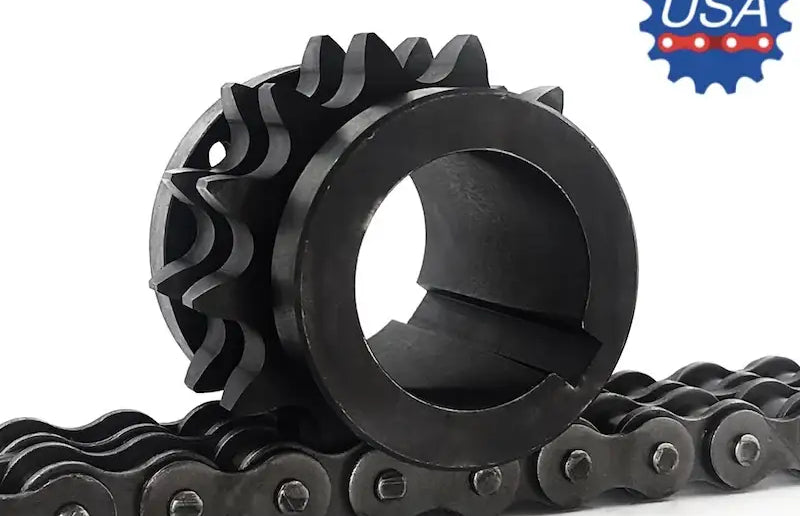

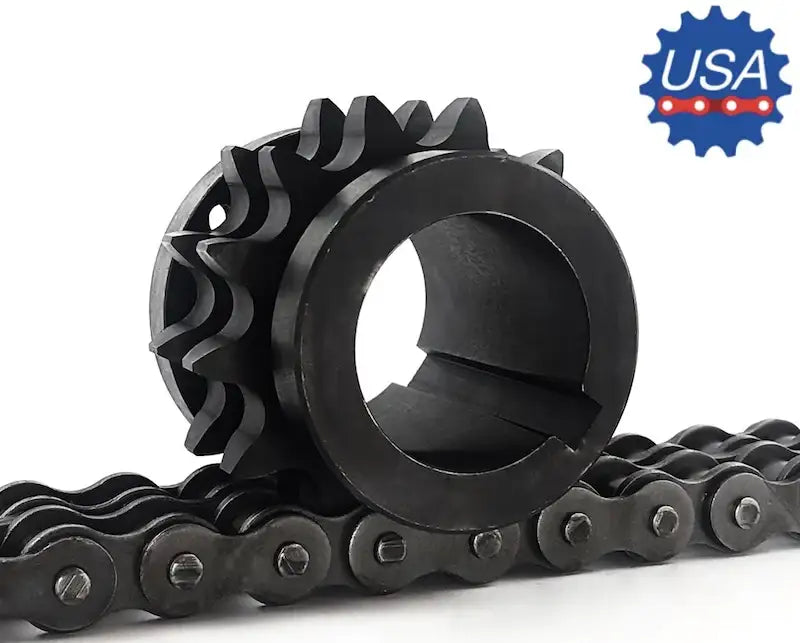

This D100P11H sprocket is a durable, high quality, and precision double sprocket with 11 hardened teeth that is manufactured to accept a P1 bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. Besides the D100P11H sprocket we offer a full line of premium P1 bushings right off the shelf. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities of providing those as well. For more information please contact us and we will be happy to assist you.

Dimensions:
D100P11H Sprocket (Taper Bushed)
  • Sprocket Size: D100P11H
  • Tooth Count: 11
  • Bushing Type: P1
  • Outside Diameter: 5.010"
  • Pitch Diameter: 4.437"
  • Sprocket Type: 14
  • Maximum Bore: 1-3/4"
  • Dimension (OL): 2-15/16"
  • Dimension (L): 1-15/16"
  • Dimension (C): 3/4"
  • Dimension (H): 3"
  • Dimension (P): 5/8"
  • Dimension (T): 0.669"
  • Bushing Weight: 1.3 LBS
  • Sprocket Weight: 4.7 LBS
