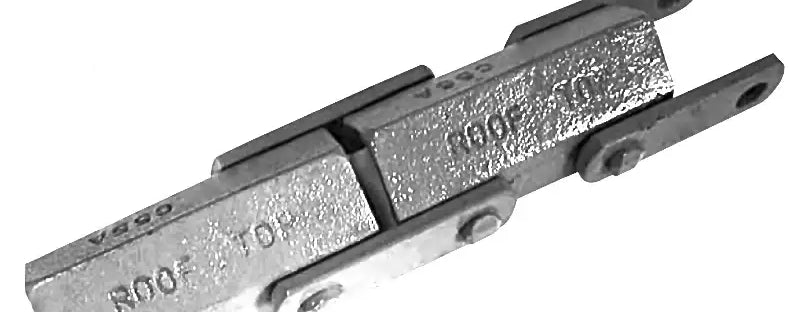

C55B Chain | C55B Rooftop Chain

Specialty Chain > Engineering Class Chains > Cast Combination Chain > C55 Combination Chain

C55B Chain | C55B Rooftop Chain

Note: Custom Cut to Length Chain Also Available
SKU: C55B-ROOFTOP-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51714976973167" , "metafield_value":""}]
C55B Chain | C55B Rooftop Chain Features
C55B Chain | C55B Rooftop Chain Specifications

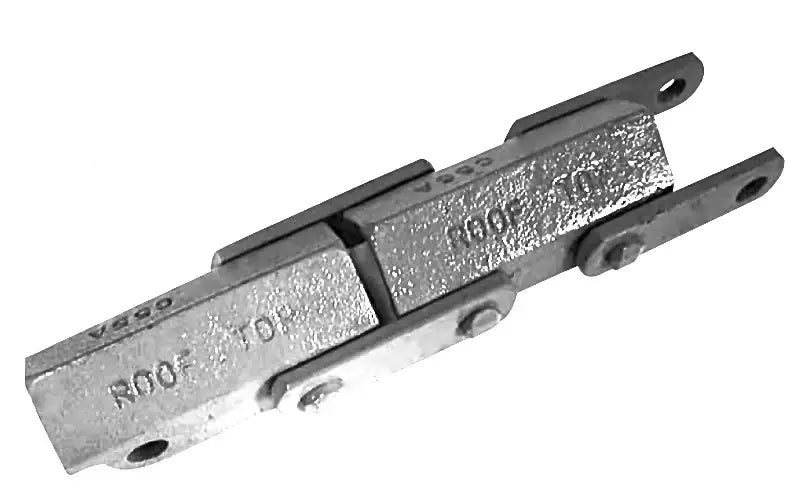

C55B chain is a rooftop style chain with a slightly flattened surface on top of the "roof" of the chain for carrying and conveying products. C55B rooftop chain is one of the most popular rooftop chains available, it is also often called C55B camelback chain. Our C55B chain is manufactured to American Standards meaning that it dimensionally interchanges with other brands and runs on the same sprockets. What sets our chain above the "standard" is the high-quality cast block links/ rooftop links as well as the special heat-treated pins and sidebars. Utilizing heat-treated steel parts and high-quality cast this rooftop chain is sure to impress! Typically the chain is supplied in 10ft lengths with means to connect it supplied, but alternate lengths of C55B chain are also available upon request. We also supply a complete line of c55B sprockets, guide track, as well as other PT components.

C55B Chain Dimensions

C55B Chain | C55B Rooftop Chain
  • Chain Type: C55B Rooftop Chain
  • Pitch: 1.631"
  • Pin Diameter (D): 0.375"
  • Sidebar Thickness (T): 0.190"
  • Barrel Diameter (Q): 0.720"
  • Maximum Allowable Sprocket Face (S): 0.690"
  • Overall Height (P): 1.250"
  • Overall Width Riveted (A): 2.000"
  • Head Of Pin To Center Line (C): 1.000"
  • Overall Length Of Barrel (X): 1.250"
  • Sidebar Height (H): 0.750"
  • Height Of Shoulder (F): 0.750"
  • Center Of Pin To Top (J): 0.880"
  • Style Of Top: Peaked
  • Links Per 10ft: 74
  • Weight Per Foot: 3.2 LBS
  • Ultimate Strength: 117,000 LBS
  • Maximum Working Load: 1,400 LBS
