#50 Straight Sidebar Roller Chain

Roller Chain > Roller Chain by Size > ANSI 50 Roller Chain 5/8 Pitch

#50 Straight Sidebar Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$199.99
SKU: C50-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714975990127" , "metafield_value":""}]
#50 Straight Sidebar Roller Chain - 10ft Box Features
#50 Straight Sidebar Roller Chain - 10ft Box Specifications

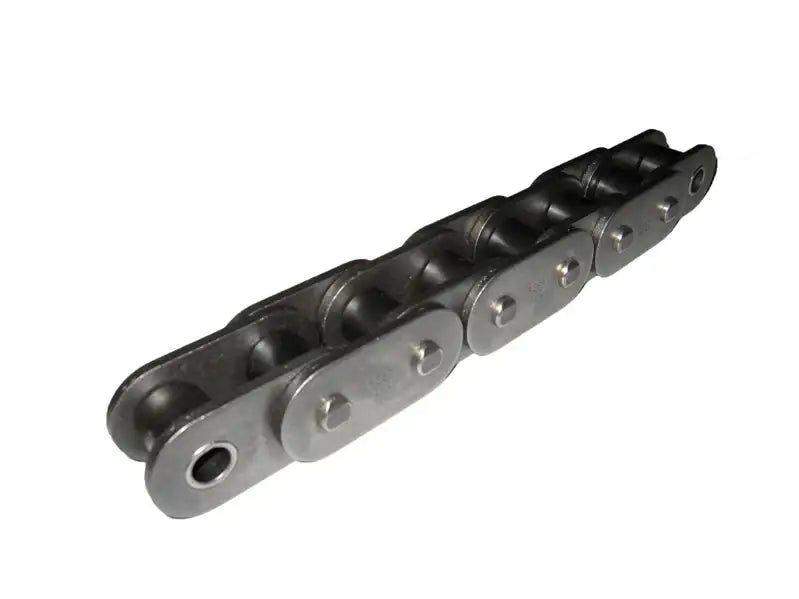

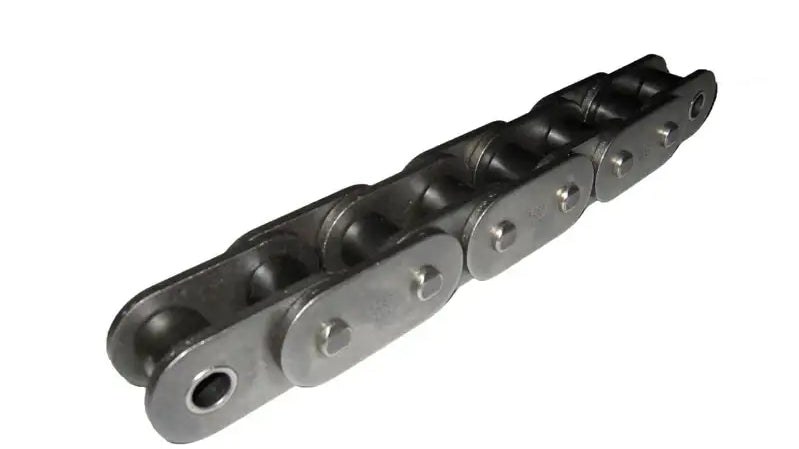

C50 Straight Sidebar Roller Chain
This #50 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ANSI #50 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box or on 50ft reels, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.

Dimensions:
#50 Straight Sidebar Roller Chain - 10ft Box
  • Chain Size: #50 Straight Sidebar Roller Chain
  • Tensile Strength: 6,620lbs
  • Pitch (P): 0.625"
  • Roller Width (W): 0.375"
  • Roller Diameter (R): 0.400"
  • Plate Height (H): 0.545"
  • Plate Thickness (T): 0.080"
  • Pin Diameter (D): 0.200"
  • Overall Width (F): 0.802"
  • Weight Per Foot: 0.771 lbs/FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: #50 Straight Sidebar Roller Chain
  • Tensile Strength: 6,620lbs
  • Pitch (P): 0.625"
  • Roller Width (W): 0.375"
  • Roller Diameter (R): 0.400"
  • Plate Height (H): 0.545"
  • Plate Thickness (T): 0.080"
  • Pin Diameter (D): 0.200"
  • Overall Width (F): 0.802"
  • Weight Per Foot: 0.771 lbs/FT
