C2052 Zinc Plated Roller Chain - 10ft Box

Name: C2052 Zinc Plated Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: C2052-ZINC-ROLLER-CHAIN
Availability: InStock

SKU: C2052-ZINC-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

C2052 Zinc Plated Roller Chain - 10ft Box Description/Features

C2052 Zinc Plated Roller Chain - 10ft Box Specifications

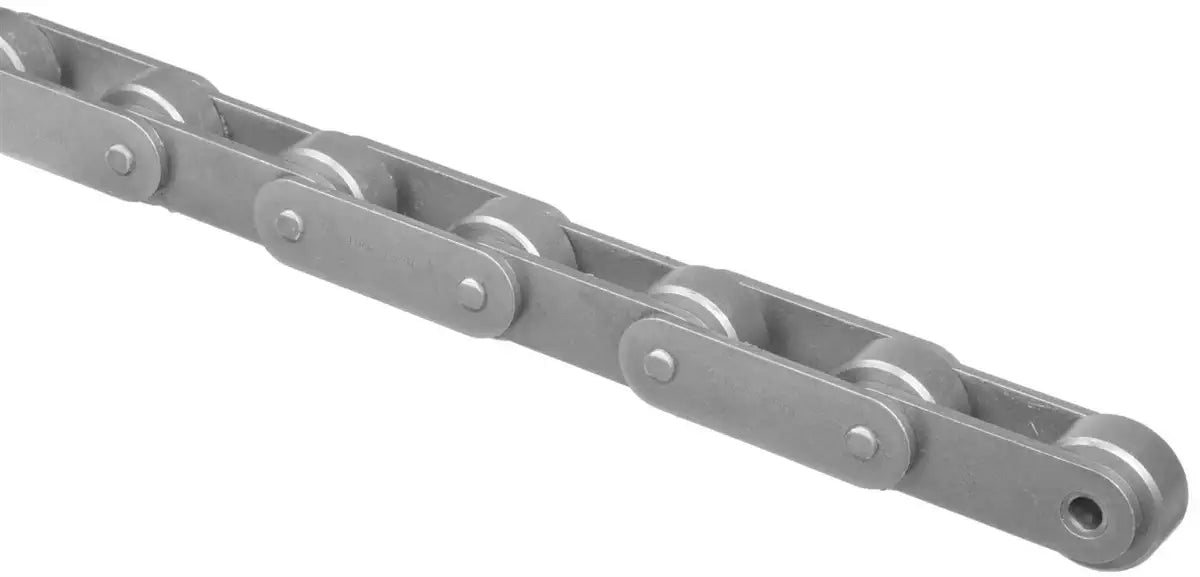

This C2052 zinc plated roller chain is a high quality corrosion-resistant ANSI roller chain that is manufactured using carbon steel as a base, then zinc plated for corrosion resistance and features oversized rollers. Zinc plated roller chains are used in an extensively wide range of applications ranging in corrosives and temperatures. The zinc plating process is done at the factory to each component before the chain is even assembled to ensure a whole and even coating. We also offer a full line of high-quality C2052 sprockets and other accessories. Fore more information or to get a quote on C2052 zinc plated roller chain please contact us and we will be happy to assist you.

Dimensions:

Chain Size: C2042
Pitch (P): 1.000"
Roller Width (W): 0.312"
Roller Diameter (R): 0.625"
Plate Height (H): 0.463"
Plate Thickness (T): 0.060"
Pin Diameter (D): 0.156"
Chain Width (F): 0.640"
Connecting Link Width (G): 0.754"
Tensile Strength: 3,690 LBS
Weight: 0.577 LBS/ FT
