Roller Chain > More Roller Chains > Double Pitch Roller Chain
C2050-2 Roller Chain (Double Strand)
Note:
Custom Cut to Length Chain Also Available
SKU: C2050-2-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2050-2 Roller Chain (Double Strand) Features
C2050-2 Roller Chain (Double Strand) Specifications
C2050-2 double strand double pitch roller chain is manufactured in accordance with ANSI Standards and is a conveyor style chain. Standard double pitch roller chain is a simplex chain but due to the increased demand of the chain, we are offering the duplex (double strand) version. What sets our chain above the standard is our solid roller design, heat-treated components, and top-quality carbon steel metallurgy. C2050-2 is dimensionally equal to a 50-2 chain with the exception of the pitch (C2050-2 = 1.250" vs 50-2= 0.625" pitch). We also supply sprockets and attachments for C2050-2 roller chain, to get pricing and availability simply contact us!

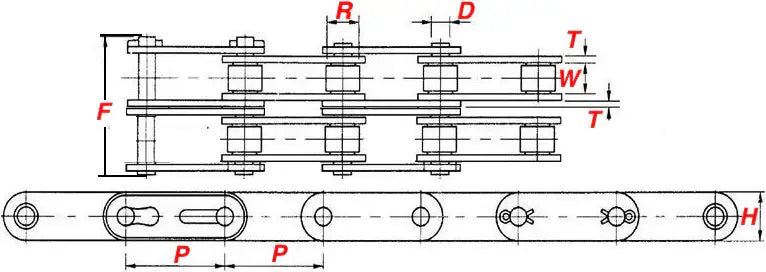

C2050-2 Roller Chain Dimensions
- Pitch (P): 1.250"
- Dimension (W): 0.375"
- Dimension (R): 0.400"
- Dimension (H): 0.593"
- Dimension (T): 0.080"
- Dimension (D): 0.200"
- Dimension (F): 1.570"
- Chain Weight: 1.12 LBS/ FT
- Pitch (P): 1.250"
- Dimension (W): 0.375"
- Dimension (R): 0.400"
- Dimension (H): 0.593"
- Dimension (T): 0.080"
- Dimension (D): 0.200"
- Dimension (F): 1.570"
- Chain Weight: 1.12 LBS/ FT
