06B Straight Sidebar Roller Chain
Home > Roller Chain > More Roller Chains > Straight Sidebar Roller Chain > 06B Straight Sidebar Roller Chain - 10ft Box

06B Straight Sidebar Roller Chain - 10ft Box

SKU: C06B-CHAIN
Only 0 left in stockItem is out of stock Item is unavailable
Request a Quote
<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51714956886383" , "metafield_value":""}]
06B Straight Sidebar Roller Chain - 10ft Box Features
06B Straight Sidebar Roller Chain - 10ft Box Specifications

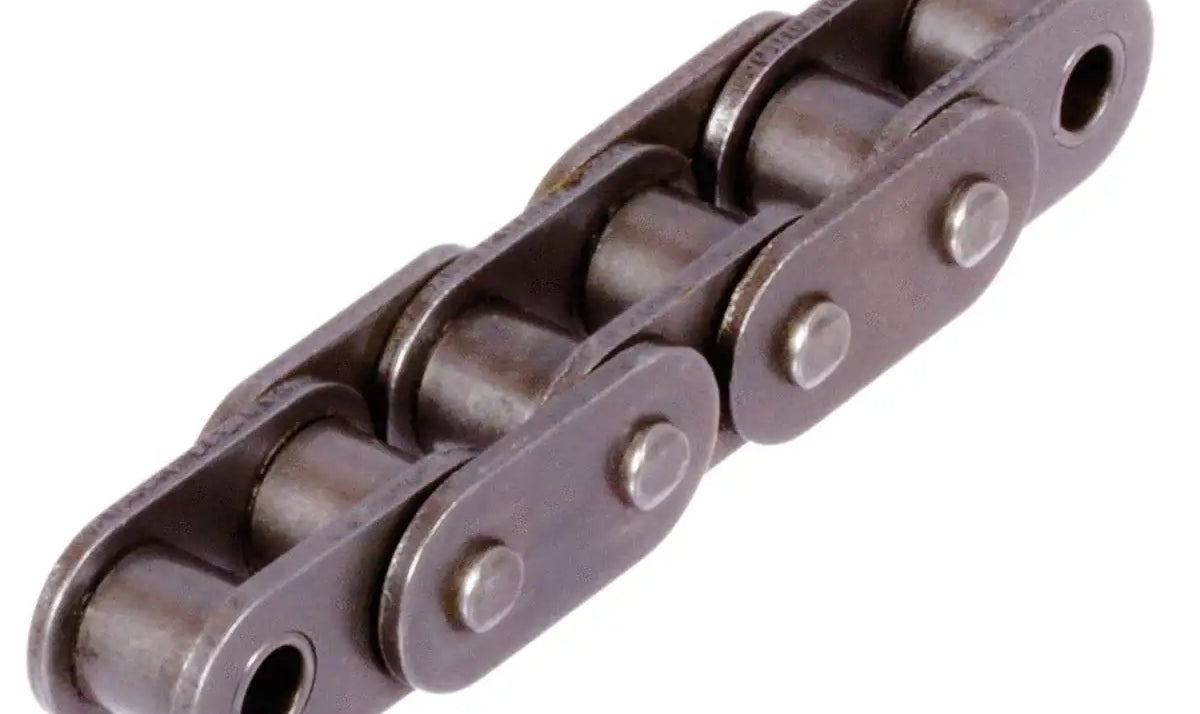

06B Straight Sidebar Roller Chain

This 06B British Standard (Metric) straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. This chain can run on ISO standard 06B sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. For pricing and availability please contact us.

Dimensions:
06B Straight Sidebar Roller Chain - 10ft Box
  • Chain Size: 06B Straight Sidebar Roller Chain
  • Tensile Strength: 2,390lbs
  • Pitch (P): 0.375"
  • Roller Width (W): 0.225"
  • Roller Diameter (R): 0.250"
  • Plate Height (H): 0.325"
  • Plate Thickness (T1): 0.049"
  • Plate Thickness (T2): 0.049"
  • Pin Diameter (D): 0.129"
  • Overall Width (F): 0.510"
  • Weight Per Foot: 0.28 lbs/FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: 06B Straight Sidebar Roller Chain
  • Tensile Strength: 2,390lbs
  • **Note: All Dimensions Are in Inches**
  • Pitch (P): 0.375
  • Roller Width (W): 0.225
  • Roller Diameter (R): 0.250
  • Plate Height (H): 0.325
  • Plate Thickness (T1): 0.049
  • Plate Thickness (T2): 0.049
  • Pin Diameter (D): 0.129
  • Overall Width (F): 0.510
  • Weight Per Foot: 0.28 lbs/FT
