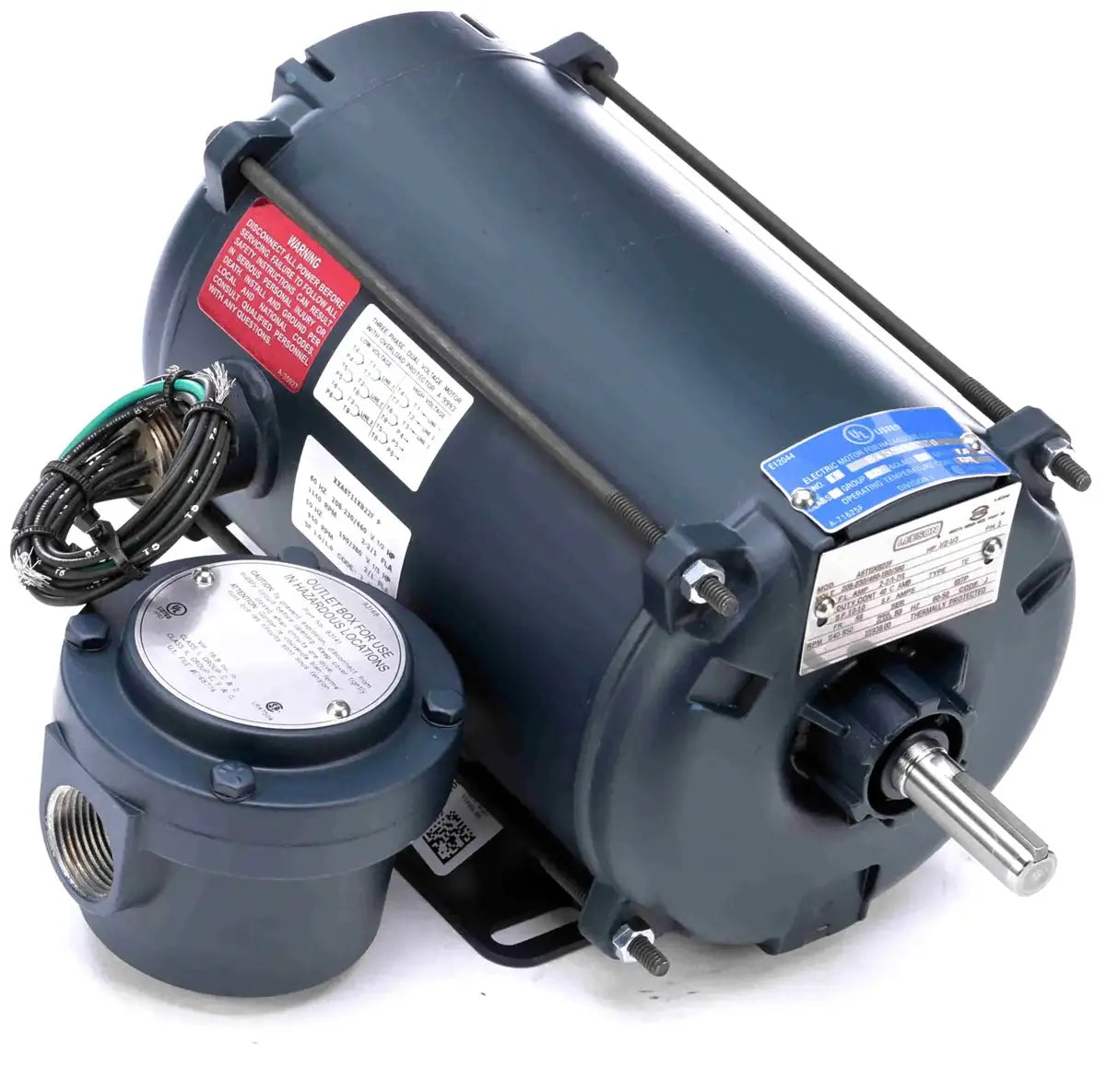

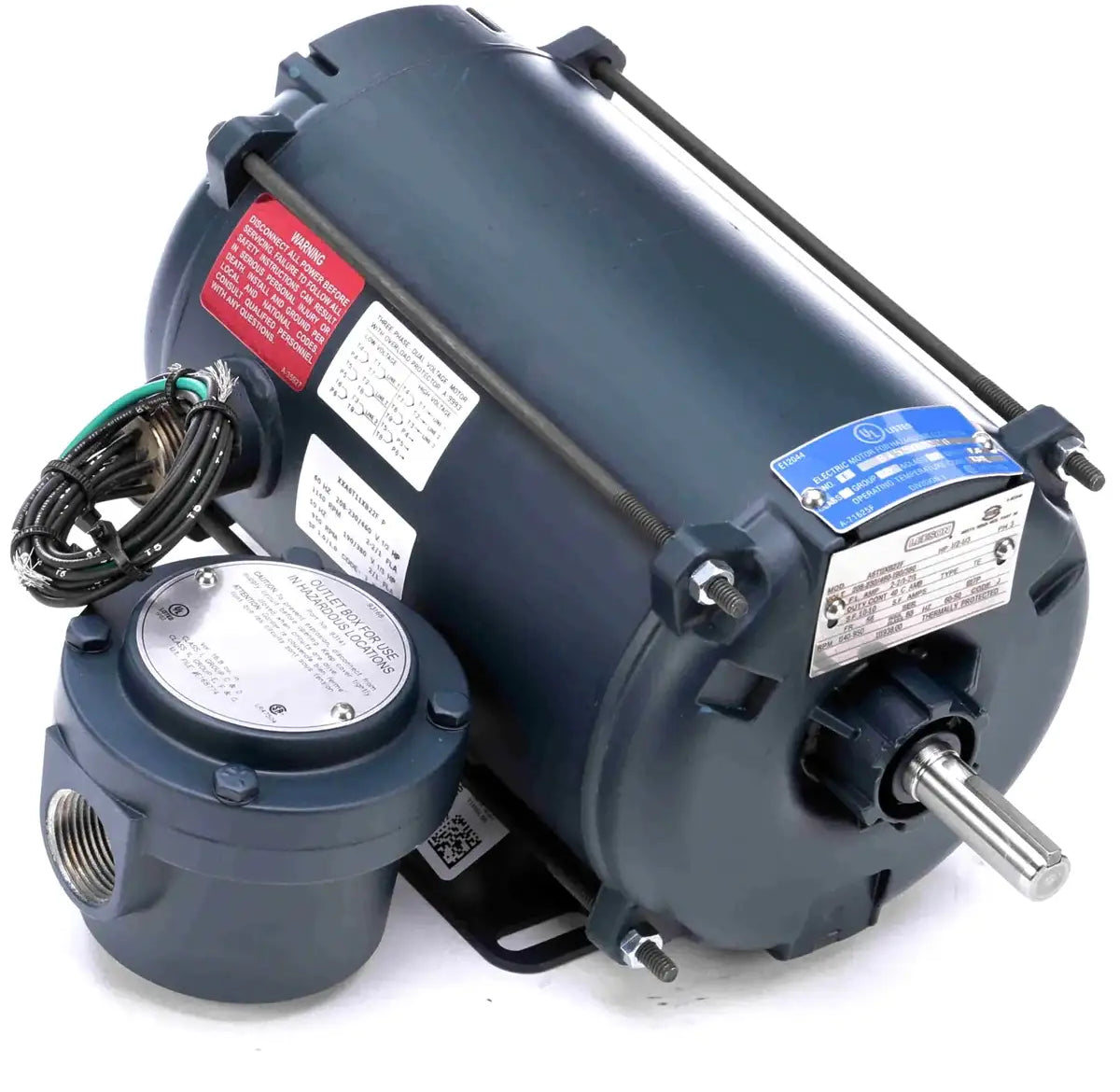

Leeson A6T11XB22 Explosion Proof Motor Specifications
- Download - A6T11XB22 Motor Connection
- Download - A6T11XB22 Motor Outline/ Drawing
- Download - A6T11XB22 Motor Certification
- Download - A6T11XB22 Motor Performance
- Download - A6T11XB22 Motor Operation Manual
- Download - A6T11XB22 Motor Complete Data Pack
A6T11XB22 General Information
UPC
|
Weight
|
Package Length
|
Package Width
|
Package Height
|
---|---|---|---|---|
691720010273 | 47.00 LB | 19.5 | 10.44 IN | 10.88 IN |
A6T11XB22 Nameplate Information
Output HP
|
Frequency
|
Current
|
Service Factor
|
Efficiency
|
---|---|---|---|---|
0.50 Hp | 60 Hz | 2.0-2.0/1.0 A | 1 | 77% |
Duty | Design Code | Frame | Thermal Protection | Drive End Bearing Size |
Continuous | B | J | Automatic | 6203 |
UL | CE | Hazardous Location | Output KW | Voltage |
UL Listed And CSA Certified | N | EXP PROOF CL I GR C&D CL II GR F&G T3C | 0.37 kW | 208-230/460 V |
Speed | Phase | Power Factor | Insulation Class | KVA Code |
1140 rpm | 3 | 63.5 | B | J |
Enclosure | Ambient Temperature | Opp Drive End Bearing Size | CSA | IP Code |
Explosion Proof Non Ventilated | 40 °C | 6203 | Y | 54 |
A6T11XB22 Technical Information
Electrical Type | Poles | Resistance Main | Motor Operation |
---|---|---|---|
Squirrel Cage Induction Run | 6 | 43.1 Ohms | Horizontal |
Opp Drive End Bearing | Shaft Type | Frame Length | Shaft Extension |
Ball | NEMA 56 | 7.81 in | 1.88 in |
Starting Method | Rotation | Mounting | Drive End Bearing |
Across The Line | Reversible | Rigid base | Ball |
Frame Material | Overall Length | Shaft Diameter | Assembly/ Box Mounting |
Rolled Steel | 13.47 in | 0.625 in | F1 ONLY |
A6T11XB22 Speed Characteristics
Curve-Point | Current (Amps) | Current (%) | Torque (ft-lbs) | (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (HP) |
---|---|---|---|---|---|---|---|---|
1/3 | 4.40 | 440.0 | 4.60 | 200.0 | 400 | - | - | 0.50 |
2/3 | 3.70 | 370.0 | 5.90 | 257.0 | 800 | - | - | 0.50 |
Pull-Up | 4.10 | 410.0 | 5.00 | 217.0 | 600 | - | - | 0.50 |
Full-Load | 1.00 | 100.0 | 2.30 | 100.0 | 1,140 | - | - | 0.50 |
Locked-Rotor | 4.60 | 460.0 | 5.50 | 239.0 | - | - | 63.5 | 0.50 |
No Load | 0.65 | 65.0 | 0.00 | 0.0 | 1,200 | - | - | 0.50 |
Break-Down | 3.20 | 320.0 | 7.20 | 313.0 | 815 | - | 75.5 | 0.50 |
A6T11XB22 Load Characteristics
% of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% | 125% |
---|---|---|---|---|---|---|---|
Current (Amps) | 0.65 | 0.70 | 0.75 | 0.85 | 1.00 | 1.10 | 1.20 |
Rated Output (KW) | 0.05 | 0.18 | 0.28 | 0.38 | 0.50 | 0.55 | 0.60 |
Efficiency (%) | 0.0 | 57.5 | 70.0 | 74.5 | 77.0 | 76.5 | 75.5 |
Power Factor (%) | 10.0 | 29.5 | 44.0 | 55.5 | 63.5 | 68.0 | 70.0 |
Speed (RPM) | 1,200 | 1,185 | 1,170 | 1,155 | 1,140 | 1,135 | 1,130 |
Temp. Rise @ FL0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 55.0 | 75.0 | 0.0 |
Torque (ft-lbs) | 0.00 | 0.60 | 1.10 | 1.70 | 2.30 | 2.60 | 2.90 |
Feature
- Premium Quality Explosion Proof Motor
- Meets All UL as Well as CSA Safety Requirements
- Uses Precision Double Shielded Bearings
