15.9 Gallon Stainless Steel Expansion Tank - Horizontal
Note:
Custom Cut to Length Chain Also Available
SKU: ZS60H-STAINLESS-STEEL-TANK
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
15.9 Gallon Stainless Steel Expansion Tank - Horizontal Features
15.9 Gallon Stainless Steel Expansion Tank - Horizontal Specifications

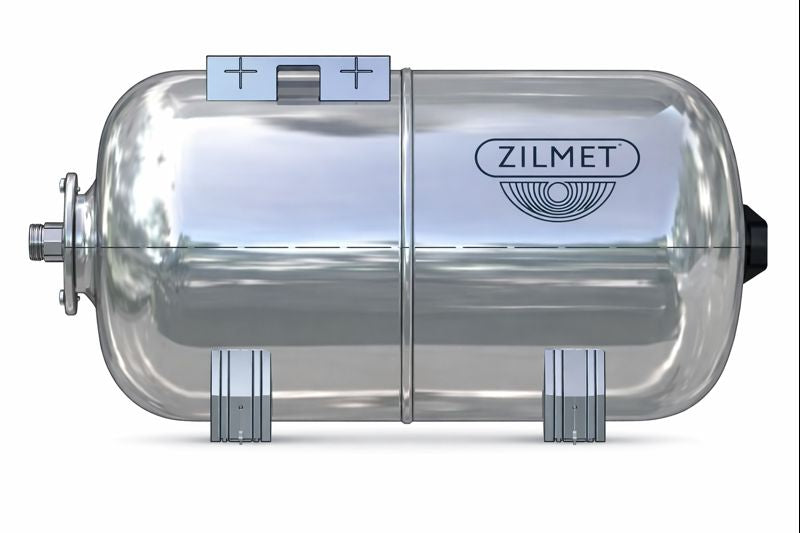

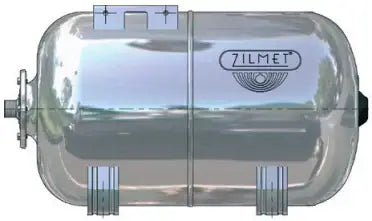

This Horizontal 15.9 Gallon Stainless Steel Expansion Tank is manufactured out of a premium quality anti corrosive grade-304 stainless steel and is made by Zilmet. Zilmet Stainless Steel Expansion Tanks are made in Italy and are the only brand offering a complete line of food-grade stainless steel expansion tanks. More specifically this 15.9 Gallon Stainless Steel Expansion Tank features a seamless diaphragm that never stretches or creases. It's made in a way that there are no bubbles or corners so therefore it cannot trap sediment that may inhibit bacterial growth. Because it is a stainless steel expansion tank it can be used in both hot and cold applications, making it extremely versatile!
15.9 Gallon Stainless Steel Expansion Tank Applications
- Food Processing Facilities
- Breweries
- Automotive Manufactures
- Hospitals
- Clean Rooms
- Marine Applications
- Dairy Plants
- Many More Applications!
Horizontal 15.9 Gallon Stainless Steel Expansion Tank Dimensions
- Model #: ZS60H
- Capacity: 15.9 Gallons
- Diameter (D): 15"
- Height (H): 16.1"
- Dimension (L): 25.2"
- Maximum Pressure: 145 psi
- Pre-Charge: 22 psi
- Connection: 1" NPT
- Configuration: Horizontal
- Model #: ZS60H
- Capacity: 15.9 Gallons
- Diameter (D): 15"
- Height (H): 16.1"
- Dimension (L): 25.2"
- Maximum Pressure: 145 psi
- Pre-Charge: 22 psi
- Connection: 1" NPT
- Configuration: Horizontal
