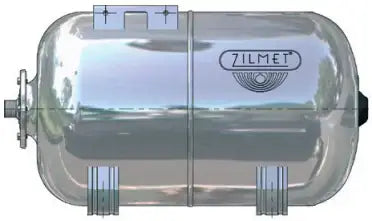

This Horizontal 6.3 Gallon Stainless Steel Expansion Tank is manufactured out of a premium quality anti corrosive grade-304 stainless steel and is made by Zilmet. Zilmet Stainless Steel Expansion Tanks are made in Italy and are the only brand offering a complete line of food-grade stainless steel expansion tanks. More specifically this 6.3 Gallon Stainless Steel Expansion Tank features a seamless diaphragm that never stretches or creases. It's made in a way that there are no bubbles or corners so therefore it cannot trap sediment that may inhibit bacterial growth. Because it is a stainless steel expansion tank it can be used in both hot and cold applications, making it extremely versatile!
6.3 Gallon Stainless Steel Expansion Tank Applications
- Food Processing Facilities
- Breweries
- Automotive Manufactures
- Hospitals
- Clean Rooms
- Marine Applications
- Dairy Plants
- Many More Applications!
Horizontal 6.3 Gallon Stainless Steel Expansion Tank Dimensions
- Model #: ZS24H
- Capacity: 6.3 Gallons
- Diameter (D): 10.6"
- Height (H): 11.4"
- Dimension (L): 19.1"
- Maximum Pressure: 145 psi
- Pre-Charge: 22 psi
- Connection: 1" NPT
- Configuration: Horizontal
Feature
- Manufactured From Anti-Corrosive 304-Stainless Steel Material
- Seamless Diaphragm That Never Stretches or Creases
- No Bubbles or Corners to Trap Sediment
- Butyl Diaphragms Suitable For Both Hot and Cold Applications
- 5-Year Warentee
- Model #: ZS24H
- Capacity: 6.3 Gallons
- Diameter (D): 10.6"
- Height (H): 11.4"
- Dimension (L): 19.1"
- Maximum Pressure: 145 psi
- Pre-Charge: 22 psi
- Connection: 1" NPT
- Configuration: Horizontal
