WRC110 Chain Features
WRC110 Chain Specifications
WRC110 chain is commonly found in forestry products, grain handling applications, and conveying applications. This WRC110 chain is a high quality, durable, and economically priced product.

Dimensions:

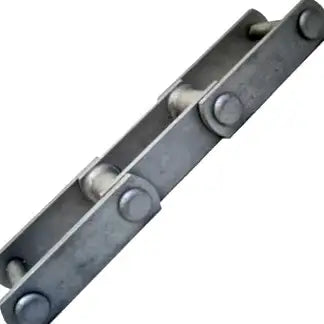

WRC110 Chain
  • Part Number: WRC110
  • Ultimate Strength: 50,400 LBS
  • Pitch (A): 6.000"
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Length Of Bearing (F): 2.812"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.00
  • Weight Per Foot: 6.40 LBS


We offer a full line of high quality sprockets for this chain that range in tooth side, bore size, and hub configurations to meet your exact needs.
Select the image below to view some of the standard sprockets offered for this chain.

WRC110 Chain


Additionally we offer a full line of attachments for this chain and can assemble them onto the chain in any configuration needed. For pricing and availability on WRC110 chain, attachments, or sprockets, please contact us.

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Part Number: WRC110
  • Ultimate Strength: 50,400 LBS
  • Pitch (A): 6.000"
  • Sidebar Height (B): 1-1/2"
  • Sidebar Thickness (C): 3/8"
  • Pin diameter (D): 3/4"
  • Overall Width (E): 4-1/4"
  • Length Of Bearing (F): 2.812"
  • Maximum Sprocket thickness (G): 1-1/2"
  • Barrel Outside Diameter (H): 1.250"
  • Links Per Foot: 2.00
  • Weight Per Foot: 6.40 LBS
