Type-CKG 15V #50 Chain Guide - Mounted

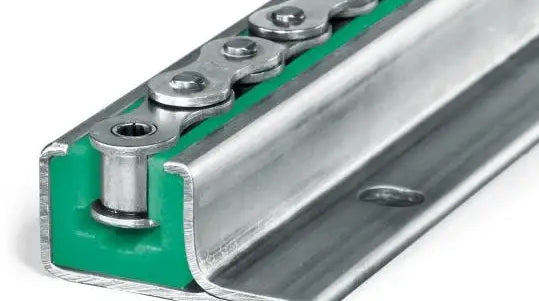

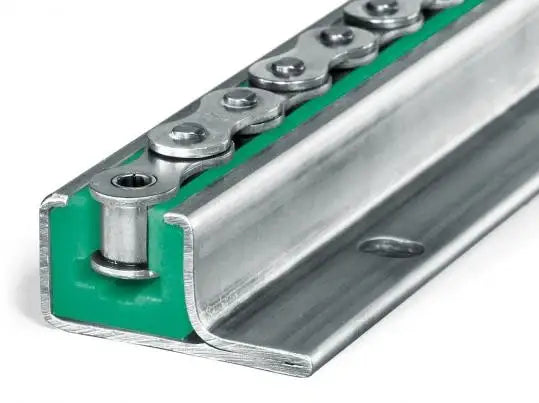

Our mounted Type-CKG 15V #50 chain guide is manufactured to high precision tolerances and conforms to ANSI standards for guiding #50 roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CKG 15V #50 chain guide uses a C15V profile. We keep C15V profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request.

Type CKG 15V #50 Chain Guide Dimensions

• Chain Size: #50
• Chain Dimensions: 5/8" X 3/8"
• Dimension (A): 31mm
• Dimension (B): 25mm
• Dimension (C): 53mm
• Dimension (D): 10.7mm
• Dimension (E): 6.4mm
• Dimension (F): 16.5mm
• Dimension (G): 8.8mm
• Dimension (H): 14.5mm
• Dimension (I): 16.2mm

C15V Profile Dimensions

• Dimension (B): 31mm
• Dimension (T): 20mm
• Dimension (H): 25mm
• Dimension (W): 2mm
• Dimension (L): 53mm

Besides chain guides we can also supply high quality roller chains, roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CKG 15V #50 chain guide or for additional information please contact our sales team and we will be happy to assist you.
