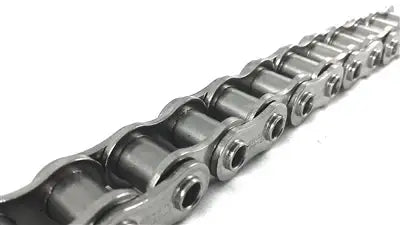

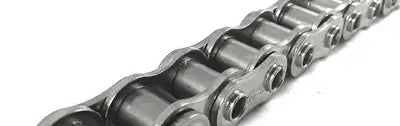

SSA1048 Stainless Steel Hollow Pin Roller Chain

Roller Chain > More Roller Chains > Hollow Pin Roller Chain > Specialty Hollow Pin Chains

SSA1048 Stainless Steel Hollow Pin Roller Chain

Note: Custom Cut to Length Chain Also Available
SKU: SSA1048-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715416326511" , "metafield_value":""}]
SSA1048 Stainless Steel Hollow Pin Roller Chain Features
SSA1048 Stainless Steel Hollow Pin Roller Chain Specifications
SSA1048 chain is a hollow pin stainless steel roller chain that is manufactured to American Standards. Hollow pin roller chains offer great versatility due to the ability to insert cross rods into the chain without chain disassembly required. This SSA1048 chain is manufactured using high quality, precision, and heat-treated components for maximum durability and working life. something else about this chain is that it is manufactured out of a high quality 304-grade stainless steel. This means that the chain is extremely corrosion resistant, lube-free, and will work in a wide range of temperatures. Besides SSA1048 chain we also have a full line of high quality sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:
SSA1048 Stainless Steel Hollow Pin Roller Chain
  • Chain Size: SSA1048
  • Pitch (P): 12.70 mm
  • Roller Diameter (Dr): 7.95 mm
  • Inside Width (W): 7.85 mm
  • Plate Height (H1): 12.07 mm
  • Plate Thickness: 1.53 mm
  • Roller Diameter (Dp): 5.56 mm
  • Hollow Pin Inside Diameter (Df): 4.01 mm
  • Riveted Pin Width (A1): 16.80 mm
  • Overall Connecting Link Width (B): 21.20 mm
  • Average Ultimate Strength: 9.50 kN
  • Average Chain Weight: 0.57 Kg/m

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Chain Size: SSA1048
  • Pitch (P): 12.70 mm
  • Roller Diameter (Dr): 7.95 mm
  • Inside Width (W): 7.85 mm
  • Plate Height (H1): 12.07 mm
  • Plate Thickness: 1.53 mm
  • Roller Diameter (Dp): 5.56 mm
  • Hollow Pin Inside Diameter (Df): 4.01 mm
  • Riveted Pin Width (A1): 16.80 mm
  • Overall Connecting Link Width (B): 21.20 mm
  • Average Ultimate Strength: 9.50 kN
  • Average Chain Weight: 0.57 Kg/m
