SS859 K44 Attachment

Specialty Chain > Engineering Class Chains > Steel Bushed Chains > SS859 Steel Bushed Chain

SS859 K44 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: SS859-K44-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715416785263" , "metafield_value":""}]
SS859 K44 Attachment Features
SS859 K44 Attachment Specifications
This SS859 K44 attachment is a premium high-strength attachment that is manufactured specifically for SS859 chain and can be assembled in any configuration needed. To get a quote for SS859 chain with K44 attachments or for more information please contact us and we will be happy to assist you!

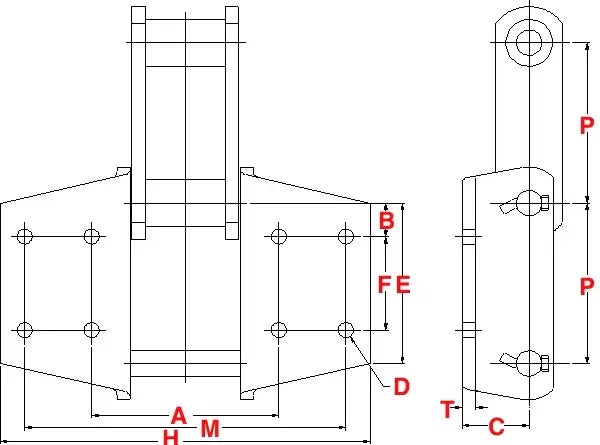

Dimensions:
SS859 K44 Attachment
  • Attachment Type: SS859 K44
  • Pitch: 6.00"
  • Dimension (A): 9.00"
  • Dimension (B): 0.75"
  • Dimension (C): 3.00"
  • Bolt Diameter (D): 0.62"
  • Hole Diameter (D): 0.69"
  • Dimension (E): 6.75"
  • Dimension (F): 2.75"
  • Dimension (H): 15.06"
  • Dimension (J): 0.88"
  • Dimension (M): 13.00"
  • Dimension (P): 4.50"
  • Dimension (T): 0.62"
  • Weight Per Foot: 68.0 LBS
