SS720 F228 Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: SS720-F228-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
SS720 F228 Attachment Features
SS720 F228 Attachment Specifications

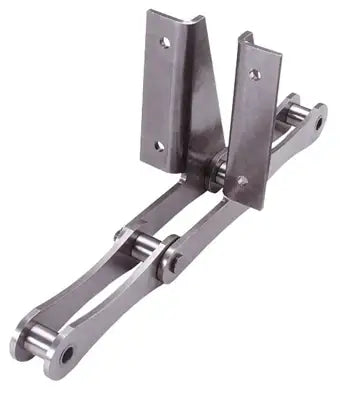

SS720 F228 Attachment is a stainless steel material attachment made for SS720 collector chain. The SS720 F228 attachment is made for 8" flights (also known as sludge flights), a 6" filler block, and is commonly accompanied with carry and return wear shoe parts. We can supply the SS720 stainless steel chain with F228 attachments in any configuration needed, along with the accompanying wear components and hardware. To get a quote on SS720 F228 Attachment links or SS720 chain with F228 attachments please contact us and we will be happy to assist you.
SS720 F228 Dimensions
- Chain Size: SS720
- Attachment Type: F228
- Material: SS
- Pitch: 6.00"
- Overall Width: 3.50"
- Dimension (A): 3.75"
- Dimension (B): 4.50"
- Dimension (C): 2.375"
- Dimension (D): 0.563"
- Dimension (E): 7.875"
- Dimension (F): 5.625"
- Dimension (G): 3.00"
- Dimension (T): 0.25"
- Ultimate Tensile Strength: 42,500 LBS
- Rated Working Load: 5,300 LBS
- Weight: 13.10 LBS
- Chain Size: SS720
- Attachment Type: F228
- Material: SS
- Pitch: 6.00"
- Overall Width: 3.50"
- Dimension (A): 3.75"
- Dimension (B): 4.50"
- Dimension (C): 2.375"
- Dimension (D): 0.563"
- Dimension (E): 7.875"
- Dimension (F): 5.625"
- Dimension (G): 3.00"
- Dimension (T): 0.25"
- Ultimate Tensile Strength: 42,500 LBS
- Rated Working Load: 5,300 LBS
- Weight: 13.10 LBS
