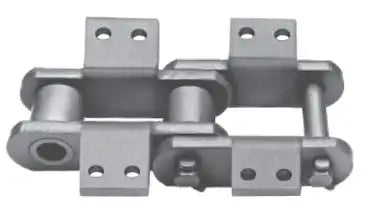

SS188 K1/ K2 Attachment

Note: Custom Cut to Length Chain Also Available
SKU: SS188-K1-K2-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us
[{"variant_id":"51715415867759" , "metafield_value":""}]
SS188 K1/ K2 Attachment Features
SS188 K1/ K2 Attachment Specifications
This SS188 K1/ K2 attachment is a premium high-strength attachment that is manufactured specifically for SS188 chain and can be assembled in any configuration needed. To get a quote for SS188 chain with K1/ K2 attachments or for more information please contact us and we will be happy to assist you!

Dimensions:
SS188 K1/ K2 Attachment
  • Attachment Type: SS188 K1/ K2
  • Pitch: 2.609"
  • Dimension (A): 3.75"
  • Dimension (B): 1.30"
  • Dimension (C): 0.81"
  • Bolt Diameter (D): 0.31"
  • Hole Diameter (D): 0.34"
  • Bolt Diameter (D1): 0.38"
  • Hole Diameter (D1): 0.41"
  • Dimension (E): 2.12"
  • Dimension (F): 1.25"
  • Dimension (G): 5.06"
  • Dimension (H): 5.12"
  • Dimension (J): 0.62"
  • Dimension (M): 4.19"
  • Dimension (T): 0.25"
  • Weight Per Foot: 5.7 LBS
