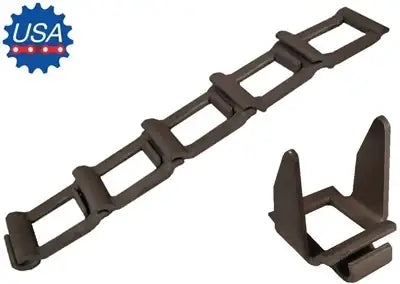

SDC #62 Chain With HB4 Attachment Every 24.81" - 10.34FT

Our bale elevator chain is manufactured using a high-strength #62 steel detachable chain that has an HB4 attachment every 24.81" (15th link) and is 10.34ft in length. What separates this chain from others is that it is manufactured using a special cold rolled steel that has been heat-treated for maximum strength and durability. The HB4 attachments on this chain is designed with two dull points which catches the hay bale and proceeds to take it up the elevator. Besides the chain we can also supply 62 series sprockets, the drive roller chains, motors, pulleys, and belts. For additional information or to get pricing and availability contact us and we will be happy to assist you.

Dimensions:

• Pitch (P): 1.654"
• Dimension (M): 1.563"
• Dimension (E): 1.002"
• Dimension (D): 0.984"
• Dimension (T): 0.148"
• Average Ultimate Strength: 4,200 LBS
• Chain Assembly Weight: 9.9 LBS
• Overall Length: 10.34FT
• Attachment Spacing: 24.81"
• Amount Of Attachments: 5
• Tolerance on Thickness: +/- 0.007"

HB4 Attachment Dimensions

• Dimension (E): 0.875"
• Dimension (F): 1.953"
• Dimension (H): 2.188"
• Dimension (T): 0.148"
